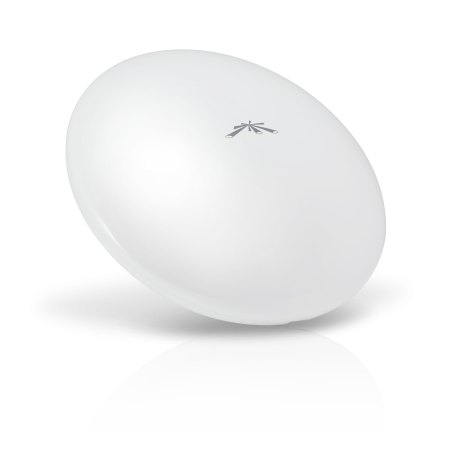

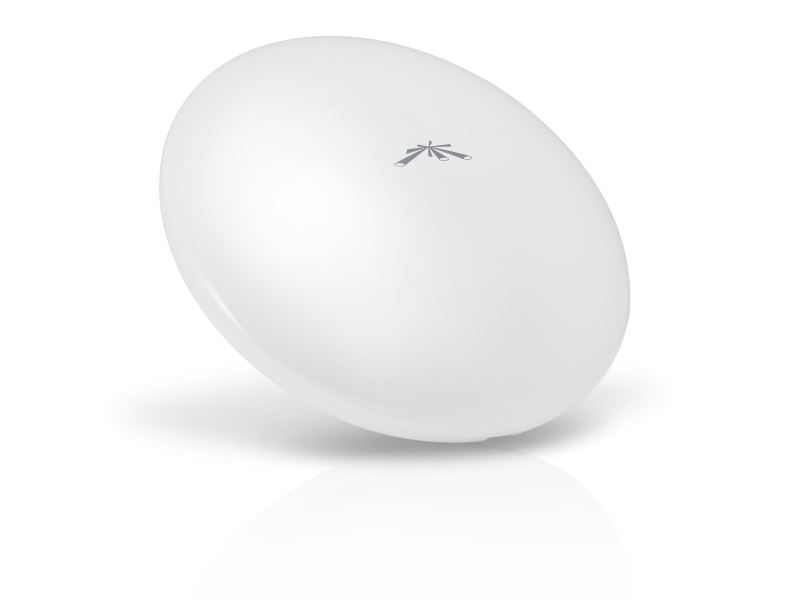

Ubiquiti NanoBeam 5GHz 16dBi incl PoE adapter

Artikelnummer: UBI-NBE-M5-16
Leveranstid: Obekräftat

Performance Breakthrough airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance. Superior Processing Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalabilit... läs mer

1 061 kr

Tillgängliga alternativ

Konfigureringshjälp *

Lägg till i önskelistan

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance

The form factor of the NanoBeam® ac features the highest gain for its size. The NanoBeam ac’s excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

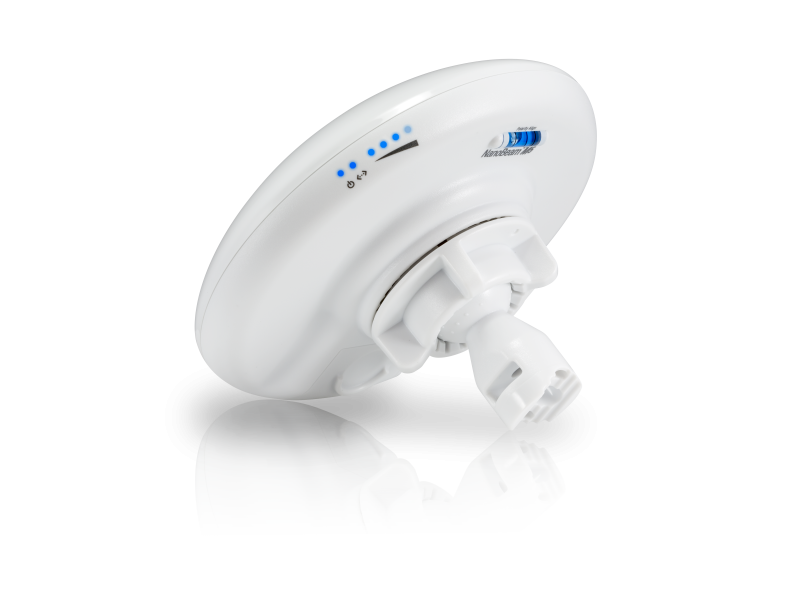

Plug and Play Installation

The NanoBeam® ac mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Wall Mount Kit

Use the optional NBE-WMK Wall Mount Kit for enhanced stability when mounting the NanoBeam on a wall.

Teknisk specifikation
Tillverkare	Ubiquiti
Modell	M5-16
Produkttyp	Trådlös brygga
Förpackad kvantitet	1
Trådlösa standarder	802.11a/n, AirMax
WiFi-frekvensband	5 GHz
Formfaktor antenn	Inbyggd
Antenner	1
Förstärkningseffekt	16 dBi

Allmän specifikation
Formfaktor	Extern
Anslutningsteknik	Trådlös
Robust design	Utomhus
Gränssnitt	1 x 100Base-TX - RJ-45
Datalänkprotokoll	IEEE 802.11n, IEEE 802.11a, AirMax
Strömförsörjningstyp	Extern strömadapter, PoE
Energiförbrukning	6 Watt
Processortillverkare	Atheros
Processortyp	MIPS 74KC
Antal processorer	1
Processor klockfrekvens	0.56 GHz
RAM-storlek	64 MB
RAM-typ	DDR2 SDRAM
Statusindikatorer	Strömförsörjning, WLAN, LAN
Flashminne storlek	8 MB

Teknisk specifikation
Tillverkare	Ubiquiti
Modell	M5-16
Produkttyp	Trådlös brygga
Förpackad kvantitet	1
Trådlösa standarder	802.11a/n, AirMax
WiFi-frekvensband	5 GHz
Formfaktor antenn	Inbyggd
Antenner	1
Förstärkningseffekt	16 dBi

Allmän specifikation
Formfaktor	Extern
Anslutningsteknik	Trådlös
Robust design	Utomhus
Gränssnitt	1 x 100Base-TX - RJ-45
Datalänkprotokoll	IEEE 802.11n, IEEE 802.11a, AirMax
Strömförsörjningstyp	Extern strömadapter, PoE
Energiförbrukning	6 Watt
Processortillverkare	Atheros
Processortyp	MIPS 74KC
Antal processorer	1
Processor klockfrekvens	0.56 GHz
RAM-storlek	64 MB
RAM-typ	DDR2 SDRAM
Statusindikatorer	Strömförsörjning, WLAN, LAN
Flashminne storlek	8 MB
