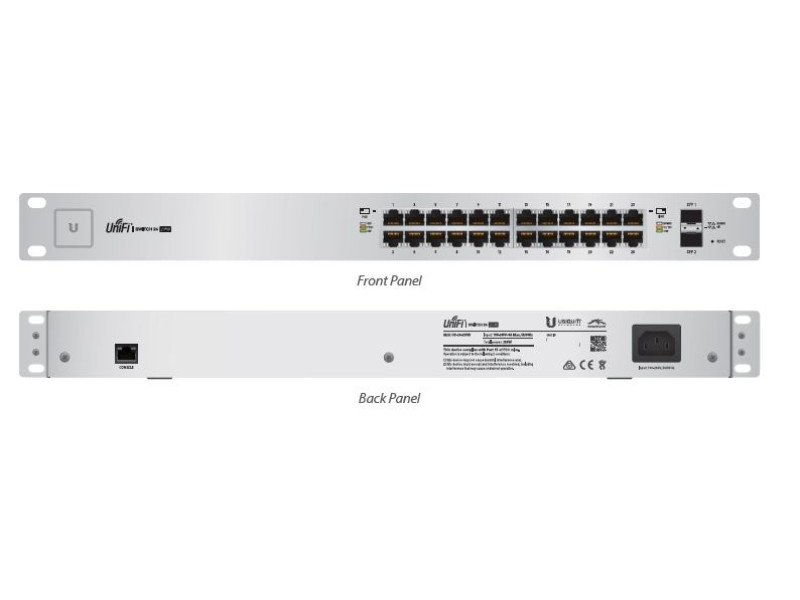

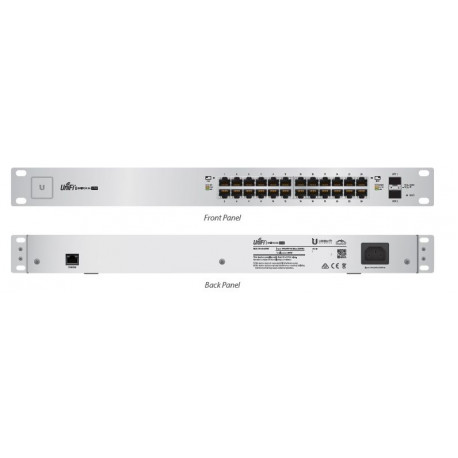

Unifi Switch 24 GE ports 250W passive POE

Artikelnummer: UBI-US-24-250W
Leveranstid: Obekräftat

Managed PoE+ Gigabit Switch with SFP Available with 24 or 48 RJ45 Gigabit ports, the UniFi® Switch delivers robust performance, PoE+ support, and intelligent switching for growing networks. Hardware Specifications Dimensions 485.04 x 44.45 x 285.6 mm (19.1 x 1.75 x 1... läs mer

Fri frakt

5 829 kr

Lägg till i önskelistan

Managed PoE+ Gigabit Switch with SFP

Available with 24 or 48 RJ45 Gigabit ports, the UniFi® Switch delivers robust performance, PoE+ support, and intelligent switching for growing networks.

Hardware Specifications

Dimensions 485.04 x 44.45 x 285.6 mm (19.1 x 1.75 x 11.24")
Weight 3.7 kg (8.16 lb)
Total Non-Blocking Throughput 26 Gbps
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Max. Power Consumption 250W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply US-24-250W AC/DC, Internal, 250W DC
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard

LEDs Per Port

Serial Console Port - N/A
RJ45 Data Ports - PoE, Speed/Link/Activity
SFP Data Ports - Speed/Link/Activity

Networking Interfaces

(24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
PoE Per Port

PoE Interfaces

POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
