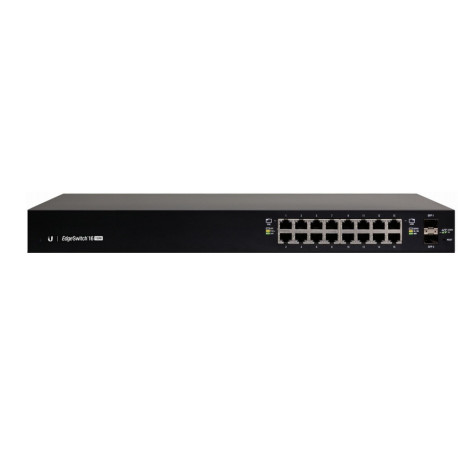

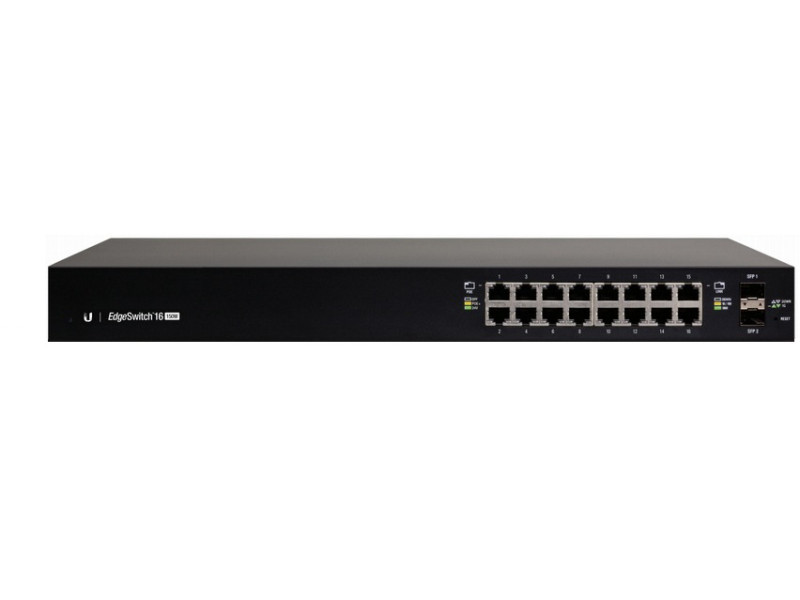

EdgeSwitch 16 GE ports 150W POE af-at-passive24
Ubiquiti

EdgeSwitch 16 GE ports 150W POE af-at-passive24

Artikelnummer: UBI-ES-16-150W
Leveranstid: Obekräftat
Advanced Switching Technology for the Masses Build and expand your network with Ubiquiti Networks® EdgeSwitch®, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing n... läs mer
Fri frakt
4 479 kr

Advanced Switching Technology for the Masses
Build and expand your network with Ubiquiti Networks® EdgeSwitch®, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

The EdgeSwitch provides total, non-blocking throughput:

  • 8-Port Model Up to 10 Gbps
  • 16-Port Model Up to 18 Gbps
  • 24-Port Models Up to 26 Gbps
  • 48-Port Models Up to 70 Gbps

PoE+ Flexibility
The EdgeSwitch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.

By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. The 8, 16, and 24-portmodels include two SFP ports, providing up to 1 Gbps uplinks.

For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing uplinks of up to 10 Gbps.

Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.

For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:

  • MSTP/RSTP/STP
  • VLAN, Private VLAN, Voice VLAN
  • Link Aggregation
  • DHCP Snooping, IGMP Snooping
  • TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
  • DiffServ, CoS
  • Static Routing
  • DHCP Server Functionality

Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight: 2.80 kg (6.17 lb); With Mount Brackets: 2.89 kg (6.37 lb)
Total Non-Blocking Throughput: 18 Gbps
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
Max. Power Consumption: 150W
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 150W DC
LEDs: Serial Console Port: N/A; RJ45 Data Ports: PoE, Speed/Link/Activity; SFP Data Ports: Speed/Link/Activity
Networking Interface: (16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications: CE, FCC, IC
Rackmount: Yes
ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard

Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight: 2.80 kg (6.17 lb); With Mount Brackets: 2.89 kg (6.37 lb)
Total Non-Blocking Throughput: 18 Gbps
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
Max. Power Consumption: 150W
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 150W DC
LEDs: Serial Console Port: N/A; RJ45 Data Ports: PoE, Speed/Link/Activity; SFP Data Ports: Speed/Link/Activity
Networking Interface: (16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications: CE, FCC, IC
Rackmount: Yes
ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
