TP-Link Omada Router ER7212, 10Gbit/s VPN Router, SFP
TP-Link Omada Router ER7212, 10Gbit/s VPN Router, SFP
TP-Link Omada Router ER7212, 10Gbit/s VPN Router, SFP
TP-Link Omada Router ER7212, 10Gbit/s VPN Router, SFP
TP-Link Omada Router ER7212, 10Gbit/s VPN Router, SFP
TP-Link

TP-Link Omada Router ER7212, 10Gbit/s VPN Router, SFP

Artikelnummer: ER8411
Leveranstid: Obekräftat
Datablad
Integrerad i Omada SDN: Zero-Touch Provisioning (ZTP)*3, centraliserad molnhantering och intelligent övervakning. Centraliserad hantering: Molnåtkomst och Omada-appen för extrem bekvämlighet och enkel hantering. Två 10GE SFP+ portar: 1× WAN och 1× WAN/LAN 10GE SFP+... läs mer
Fri frakt
6 499 kr
  • Integrerad i Omada SDN: Zero-Touch Provisioning (ZTP)*3, centraliserad molnhantering och intelligent övervakning.
  • Centraliserad hantering: Molnåtkomst och Omada-appen för extrem bekvämlighet och enkel hantering.
  • Två 10GE SFP+ portar: 1× WAN och 1× WAN/LAN 10GE SFP+-portar ger aggregeringsanslutning med hög bandbredd.
  • Upp till 10 WAN-portar: Fiber- och RJ45 WAN-portar med belastningsbalans ökar utnyttjandegraden för bredband med flera linjer.
  • Mycket säker VPN: SSL/IPSec/PPTP/L2TP VPN och OpenVPN/L2TP över IPSec VPN är idealiska för användning över flera grenar och för WFH.
  • Rikliga säkerhetsfunktioner: Kraftfull brandvägg, DoS-försvar, IP/MAC/URL-filtrering och IP-MAC-bindning och ALG-aktivering med ett klick ger säkerhet i världsklass.
SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • WEB Group Filtering*5
• URL Filtering
• Web Security*5
ARP Inspection • Sending GARP Packets*5
• ARP Scanning*5
• IP-MAC Binding*5
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN

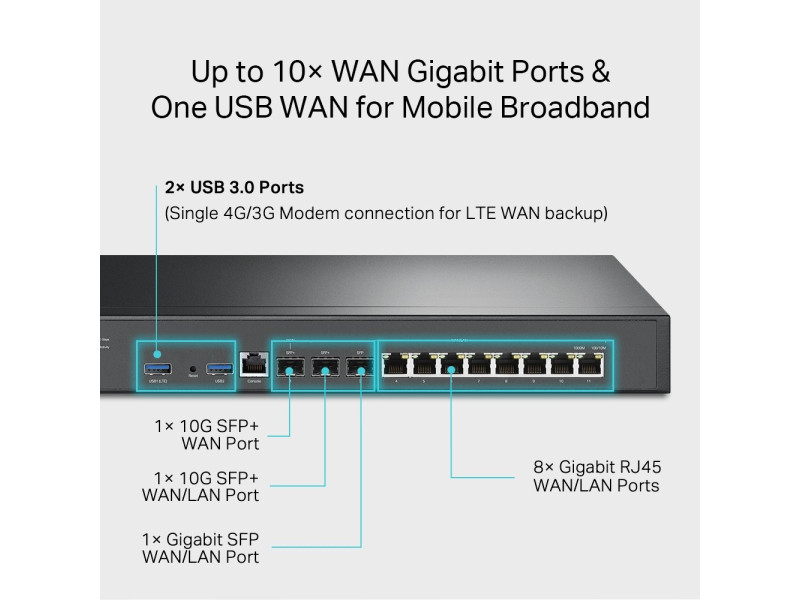

Interface • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
• 1× 1GE SFP WAN/LAN Ports
• 8× 1GE RJ45 WAN/LAN Ports
• 1× RJ45 Console Ports
• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity 2
Button Reset Button

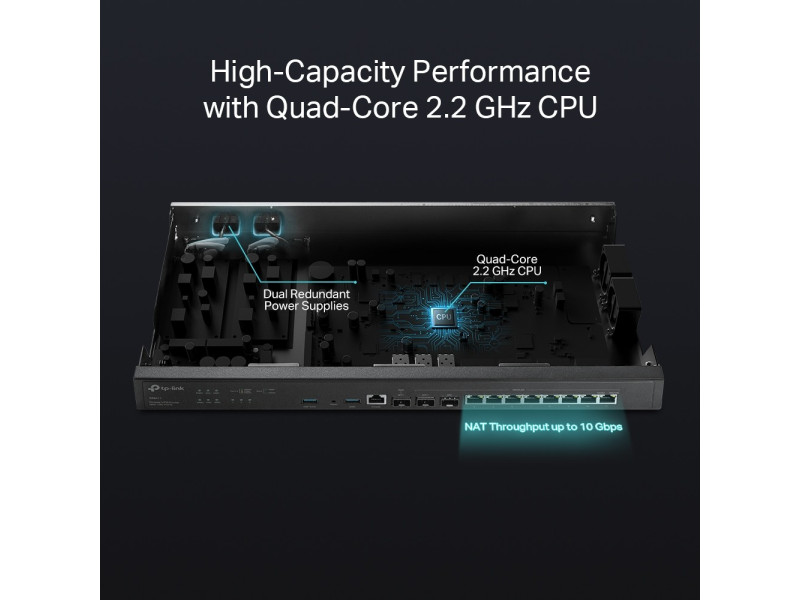

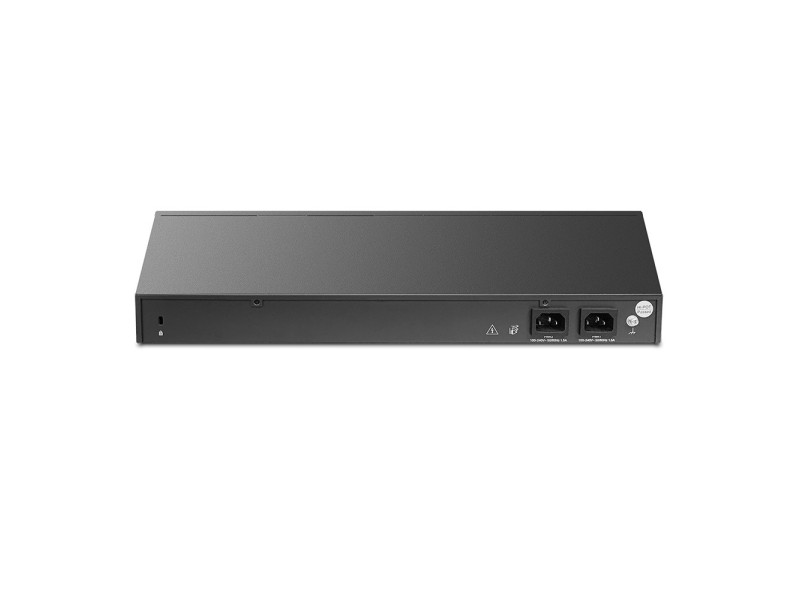

Power Supply Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
PoE Budget -
Flash 4MB SPI NOR + 256 MB NAND
DRAM 4 GB DDR4
LED PWR, SYS, WAN, LAN, USB, FAN
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting Rack Mountable
Max Power Consumption • 26.36 W (with USB 3.0 connected)
• 19.12 W (without USB 3.0 connected)
PERFORMANCE
WireGuard VPN 1411 Mbps
Concurrent Session 2,300,000
New Sessions /Second 20,000
NAT (Static IP) • Upload: 9445.82 Mbps
• Download: 9449.26 Mbps
NAT(DHCP) • Upload: 9426.83 Mbps
• Download: 9426.20 Mbps
NAT(PPPoE) • Upload: 9413.96 Mbps
• Download: 9102.01 Mbps
NAT (L2TP) • Upload: 4230.62 Mbps
• Download: 4169.53 Mbps
NAT (PPTP) • Upload: 3933.86 Mbps
• Download: 3821.97 Mbps
64 Byte Packet Forwarding Rate • Upload: 1080 Mbps
• Download: 1030 Mbps
IPsec VPN Throughput • SHA1-AES256: 2140.45 Mbps
• SHA2-AES256: 2080.20 Mbps
OpenVPN 1665.64 Mbps
L2TP VPN Throughput • Unencrypted: 5013.50 Mbps
• Encrypted: 2274.74 Mbps
PPTP VPN Throughput • Unencrypted: 10143 Mbps
• Encrypted: 952 Mbps
SSL VPN Throughput 1511.10 Mbps
66 Byte Packet forwarding rate -
1,518 Byte Packet forwarding rate • Upload: 9970 Mbps
• Download: 9970 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• 6to4 Tunnel
• Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address*4
DHCP • DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces
IPv6 WAN Connection
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
Bandwidth Control • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing*5, Failover)
• Online Detection
NAT • One-to-One NAT*5
• Multi-Net NAT
• Virtual Server
• Port Triggering*5
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Security • SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit IP-based Session Limit
VPN
SSL VPN • SSL VPN Server
• SSL VPN Client
• 500 OpenVPN Tunnels
IPsec VPN • 300 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (32)*6
• 300 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (32)*6
• 300 Tunnels (Shared with PPTP)
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (10)*6
• 110 OpenVPN Tunnels
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*2
• Hotspot（Local User / Voucher*2 / SMS*2 / Radius*2）
• External Radius Sever
• External Portal Sever*2
• Facebook Check-In*2
• Instagram Follow*2
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)*5
• NTP Synchronize*5
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents • Omada 10G Multi-WAN Security Gateway ER8411
• Power Cord
• Rack-Mount Kit
• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • WEB Group Filtering*5
• URL Filtering
• Web Security*5
ARP Inspection • Sending GARP Packets*5
• ARP Scanning*5
• IP-MAC Binding*5
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
Interface • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
• 1× 1GE SFP WAN/LAN Ports
• 8× 1GE RJ45 WAN/LAN Ports
• 1× RJ45 Console Ports
• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity 2
Button Reset Button
Power Supply Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
PoE Budget -
Flash 4MB SPI NOR + 256 MB NAND
DRAM 4 GB DDR4
LED PWR, SYS, WAN, LAN, USB, FAN
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting Rack Mountable
Max Power Consumption • 26.36 W (with USB 3.0 connected)
• 19.12 W (without USB 3.0 connected)
PERFORMANCE
WireGuard VPN 1411 Mbps
Concurrent Session 2,300,000
New Sessions /Second 20,000
NAT (Static IP) • Upload: 9445.82 Mbps
• Download: 9449.26 Mbps
NAT(DHCP) • Upload: 9426.83 Mbps
• Download: 9426.20 Mbps
NAT(PPPoE) • Upload: 9413.96 Mbps
• Download: 9102.01 Mbps
NAT (L2TP) • Upload: 4230.62 Mbps
• Download: 4169.53 Mbps
NAT (PPTP) • Upload: 3933.86 Mbps
• Download: 3821.97 Mbps
64 Byte Packet Forwarding Rate • Upload: 1080 Mbps
• Download: 1030 Mbps
IPsec VPN Throughput • SHA1-AES256: 2140.45 Mbps
• SHA2-AES256: 2080.20 Mbps
OpenVPN 1665.64 Mbps
L2TP VPN Throughput • Unencrypted: 5013.50 Mbps
• Encrypted: 2274.74 Mbps
PPTP VPN Throughput • Unencrypted: 10143 Mbps
• Encrypted: 952 Mbps
SSL VPN Throughput 1511.10 Mbps
66 Byte Packet forwarding rate -
1,518 Byte Packet forwarding rate • Upload: 9970 Mbps
• Download: 9970 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• 6to4 Tunnel
• Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address*4
DHCP • DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces
IPv6 WAN Connection
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
Bandwidth Control • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing*5, Failover)
• Online Detection
NAT • One-to-One NAT*5
• Multi-Net NAT
• Virtual Server
• Port Triggering*5
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Security • SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit IP-based Session Limit
VPN
SSL VPN • SSL VPN Server
• SSL VPN Client
• 500 OpenVPN Tunnels
IPsec VPN • 300 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (32)*6
• 300 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (32)*6
• 300 Tunnels (Shared with PPTP)
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (10)*6
• 110 OpenVPN Tunnels
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*2
• Hotspot（Local User / Voucher*2 / SMS*2 / Radius*2）
• External Radius Sever
• External Portal Sever*2
• Facebook Check-In*2
• Instagram Follow*2
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)*5
• NTP Synchronize*5
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS

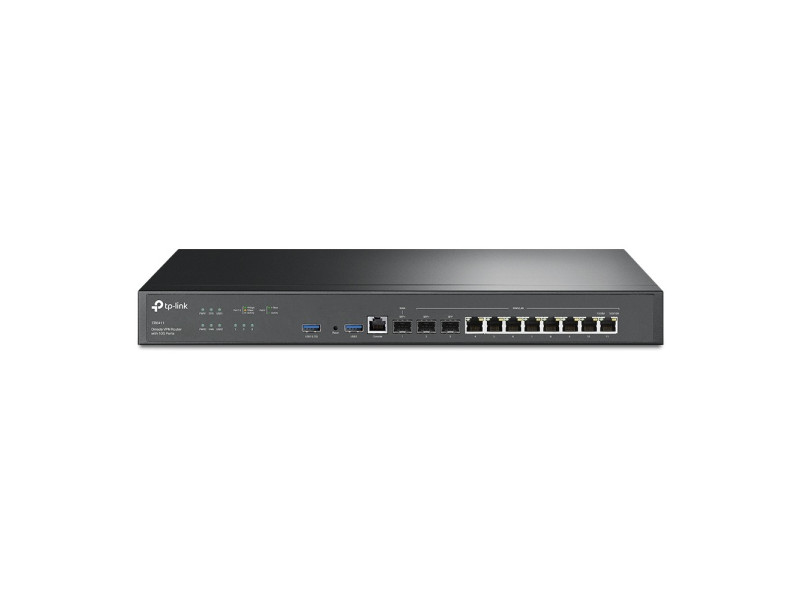

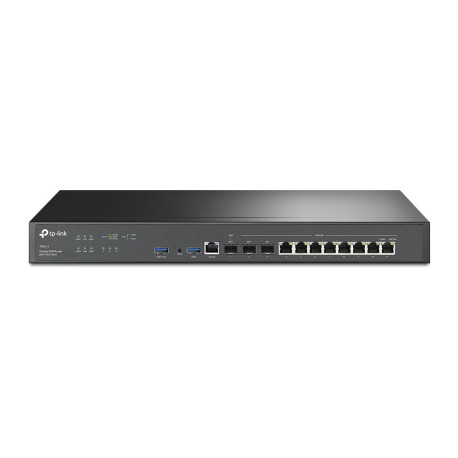

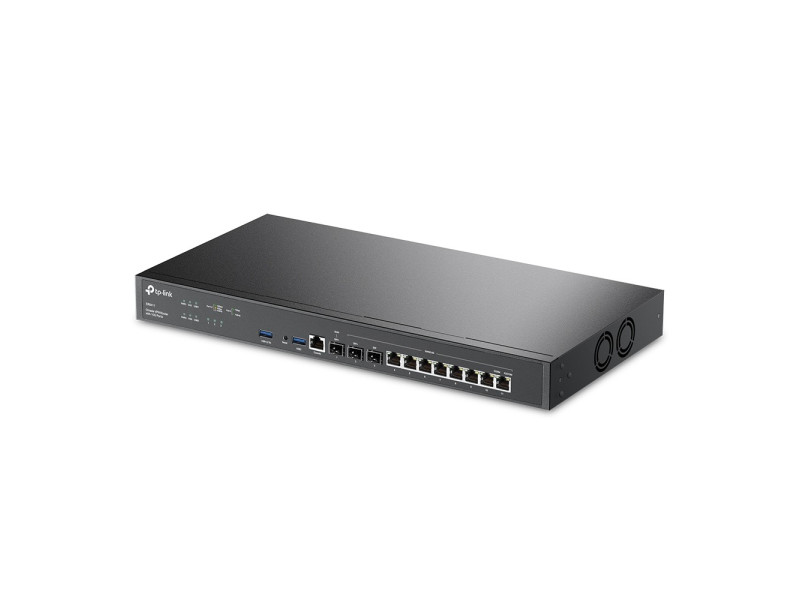

Package Contents • Omada 10G Multi-WAN Security Gateway ER8411
• Power Cord
• Rack-Mount Kit
• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Skriv en recension
