Ubiquiti 2.4GHz dual omni 10dBi 78cm pipe diam max 87mm

Artikelnummer: UBI-AMO-2G10
Leveranstid: Obekräftat
The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) ... läs mer
Fri frakt
2 668 kr

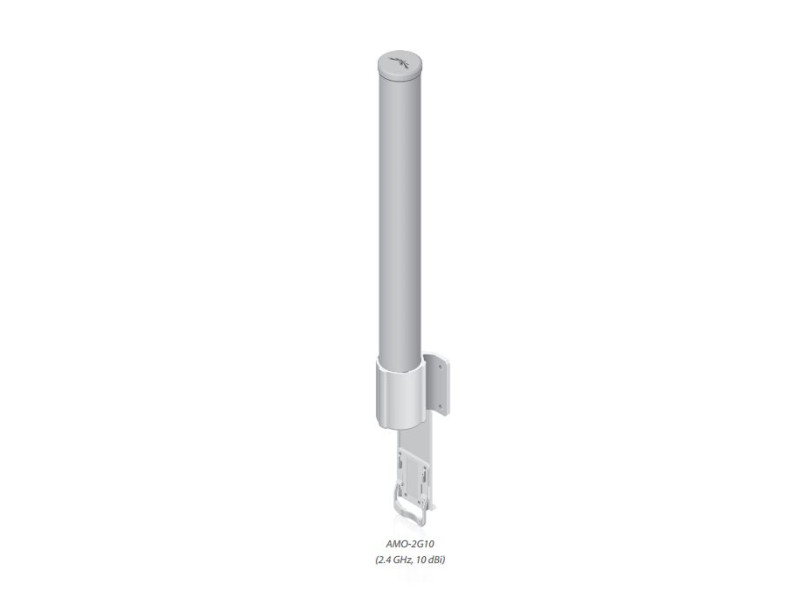

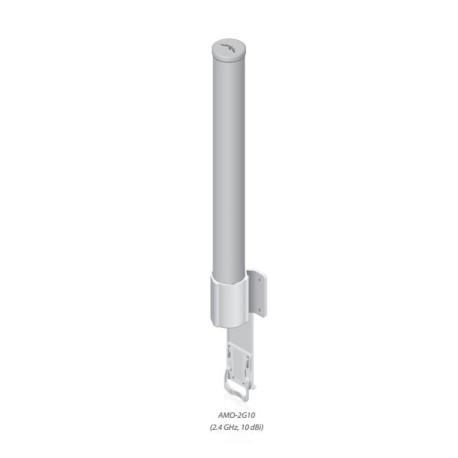

The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).

On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.

Flexibility
To support your specific application, the airMAX Omni Antenna is available in multiple frequency models:

  • 2.4 GHz (Denna modell)
  • 3 GHz
  • 5 GHz

Breakthrough Design
The airMAX Omni Antenna is the first of its kind to feature a patented, dual-polarity omni design.

Omnidirectional Coverage
The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.

Durable Construction
Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.

Plug and Play Integration

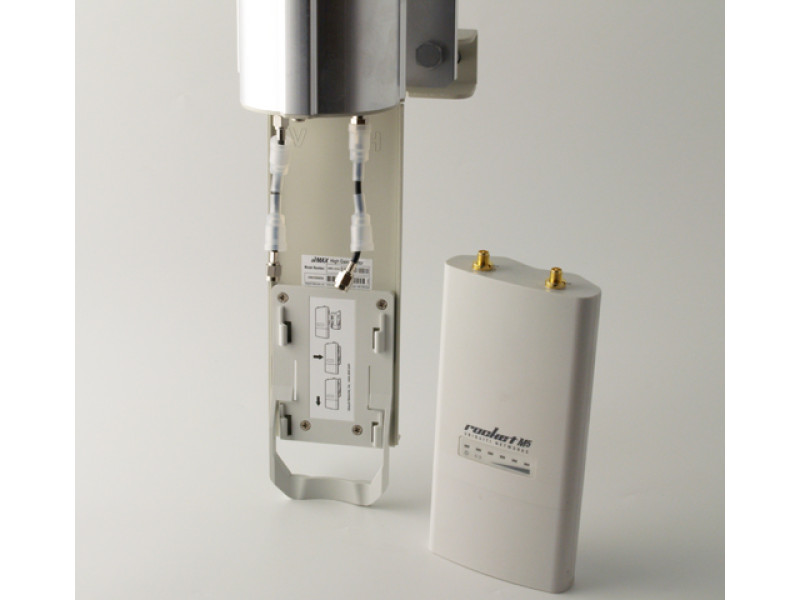

Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.

Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.

Teknisk specifikation
Dimensions 1012 x 122 x 105 mm (39.84 x 4.8 x 4.13")
Weight 2.1 kg (4.24 lb)
Frequency Range 2.35 - 2.55 GHz
Gain 10 dBi
Elevation Beamwidth 12°
Max VSWR 1.7:1
Downtilt 4°
Wind Survivability 200 km/h (125 mph)
Wind Loading 97.9 N @ 200 km/h (22 lbf @ 125 mph)
Polarization Dual-Linear
Cross-pol Isolation 25 dB min
ETSI Specification EN 302 326 DN2

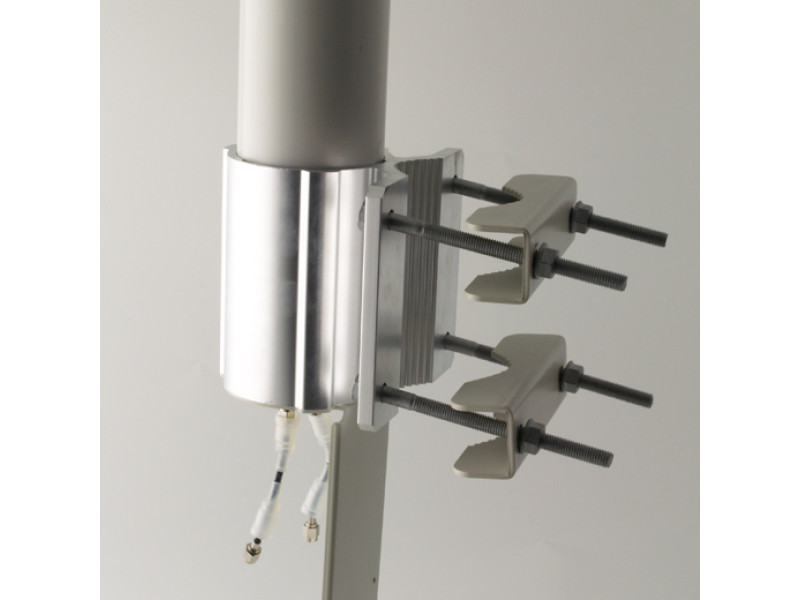

Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
Teknisk specifikation
Dimensions 1012 x 122 x 105 mm (39.84 x 4.8 x 4.13")
Weight 2.1 kg (4.24 lb)
Frequency Range 2.35 - 2.55 GHz
Gain 10 dBi
Elevation Beamwidth 12°
Max VSWR 1.7:1
Downtilt 4°
Wind Survivability 200 km/h (125 mph)
Wind Loading 97.9 N @ 200 km/h (22 lbf @ 125 mph)
Polarization Dual-Linear
Cross-pol Isolation 25 dB min
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
