Mobilt bredband för marin med extern antenn

Artikelnummer: RUT360-LMO6138-WB-SMSM
Leveranstid: Beställningsvara
Datablad, LMO6138
Datablad, RUT360
Marinpaket med extern antenn för dig som vill kunna surfa ute i havs med stabil mobiluppkoppling.  LMO6138 är en MIMO (2 port) 5G / 4G / LTE Multiband rundstrålande antenn. Inrymt i en tålig radom, är LMO6138 en antenn som lämpar sig för utomhusbruk inklusive fritids ... läs mer
Fri frakt
3 781 kr
Ord. pris 4 066 kr

Marinpaket med extern antenn för dig som vill kunna surfa ute i havs med stabil mobiluppkoppling.

LMO6138 är en MIMO (2 port) 5G / 4G / LTE Multiband rundstrålande antenn. Inrymt i en tålig radom, är LMO6138 en antenn som lämpar sig för utomhusbruk inklusive fritids och marina miljöer för att förbättra mottagningen av 5G, 4G (LTE), 3G-och GSM-signaler, framför allt för trådlöst bredband och CCTV-distributioner.

Vertikalantennens frekvensområde och förstärkning

617-700 MHz         1.0 dBi
700-960 MHz         3.3 dBi
1710-2200 MHz     4.0 dBi
2500-2700 MHz     3.8 dBi
3400-3800 MHz     3.0 dBi

Horisontalantennens frekvensområde och förstärkning

617-700 MHz         0.6 dBi
700-960 MHz         2.2 dBi
1710-2200 MHz     3.6 dBi
2500-2700 MHz     5.7 dBi
3400-3800 MHz     6.9 dBi

Antennen levereras med 2x15cm antennsladdar med SMA-hane kontakt för vidare påkoppling av valfri längd. Se tillbehör för färdiga kabellängder eller kontakta oss för att få din kabel skräddarsydd efter ditt behov.

Den kompakta industriella mobila router RUT360 erbjuder en rad av anslutningsmöjligheter för att nå internet via 3G/4G, Wifi eller trådat nätverk som t.ex. Fiber.

Unik programmering, remote monitoring via Teltonikas RMS och övriga säkerhetsfunktioner gör RUT360 till den perfekta IoT och M2M routern, där säkerhet och tillförlitlig uppkoppling är ett måste. Carrier aggregation funktion gör den här kompakta enheten oersättbar i miljöer eller applikationer där mobilt bredband är begränsad.

  • 4G LTE Cat 6 - Mobilt bredband upp till 300 Mbps med Carrier aggregation
  • Wifi - 802.11 b/g/n-standard (2.4GHz)
  • Kompakt - Liten storlek och enkel att integrera vart som helst
  • Hållbarhet - Ruggat aluminiumchassi
  • Säkerhet - Brandvägg och flertal VPN-tjäster som OpenVPN, IPsec, PPTP, L2TP och SSTP
  • RMS - Kompatibel med Teltonikas Remote Management System

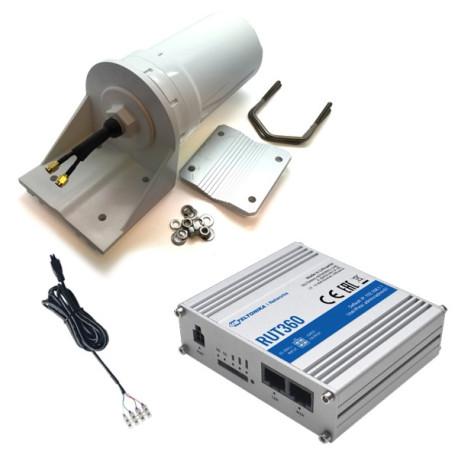

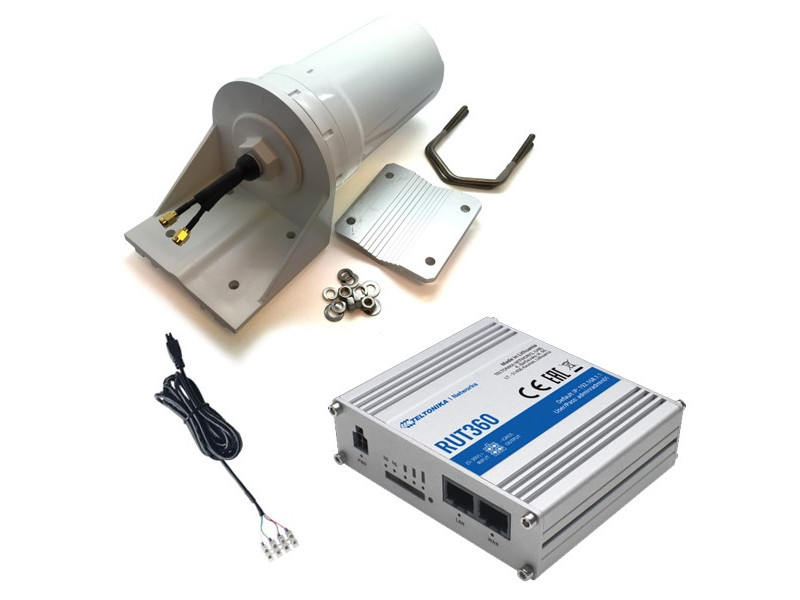

Paketet innehåller

1 st

Teltonika RUT360 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps

RUT360 RUT360 är en uppdaterad version av den välkända RUT240. Den kompakta industriella mobila router erbjuder en rad av anslutningsmöjligheter för att nå i
2781 kr/st 2990 kr Ord. pris Incl Tax I lager
Till produktsida
1 st

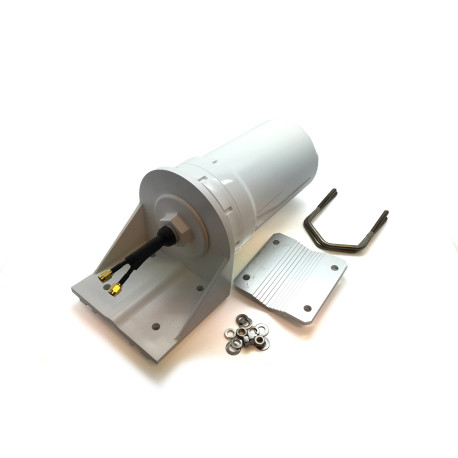

EAD LMO6138 Rundstrålande 690-2700MHz MiMo-antenn för 2G/3G/4G/5G

LMO6138-WB-SMSM Rundstrålande MiMO-antenn med 3dbi gain Denna rundstrålande antenn har 2st antennelement för optimal mottagning i de snabba 3G, 4G och 5G näten.
1390 kr/st 1495 kr Ord. pris Incl Tax Ej i lager
Till produktsida
1 st

Teltonika 4-pin strömkabel med I/O

PR2FK20M Strömkabel med 4-pin kontakt för att ansluta till Teltonika RUT2xx, RUT9xx osv. Input connector 4-way screw terminal Output connector
166 kr/st 179 kr Ord. pris Incl Tax I lager
Till produktsida
Teknisk Specifikation antenna LMO6138
Frekvensområde 690-800/800-960
1710-2170/2500-2700 MHz
3400-3800 MHz
Max gain - Element 1
Max gain - Element 2		 1.4 / 2.0 /3.0 / 3.3 dBi
2.8 / 3.0 / 3.9 / 3.9 dBi
Polarisation Dubbel
Impedans 50 Ohm
VSWR <2:1
Effekt 10W
Drifttemperatur -30 Till +70 grader C°
Kabel / Anslutningar 2 x 15cm SMA anslutning
Dimensioner 187 x 106 (h x d) Exkl. monterings bracket
Teknisk Specifikation RUT360
MOBILE
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/Whiles list (planned) Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge mode Direct connection (bridge) between mobile ISP and device on LAN
WIRELESS
Wireless mode 802.11 b/g/n, 2x2 MIMO, Access Point (AP), Station (STA)
WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, SMS OTP, MAC auth, built in customizable landing page, walled garden
ETHERNET
WAN 1 x WAN port (can be configured as LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
LAN 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
NETWORK
Routing Static routes, Dynamic routes
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, NAT rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) () Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Tag based VLAN separation
Mobile quota control Custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPSec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
MODBUS TCP SLAVE
ID filtering Respond to one ID in range [1;255] or any
Allow remote access Allow access through WAN
Custom registers Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT GATEWAY
Gateway Allows sending commands and receiving data from Modbus Master trough MQTT broker
DNP3
Supported modes TCP Master, DNP3 Outstation
DATA TO SERVER
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
Modbus Modbus TCP status/control
RMS Teltonika Remote Management System (RMS)
IoT PLATFORMS
Clouds of things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
SYSTEM CHARACTERISTICS
CPU QCA9531, MIPS 24kc, 650 MHz
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash (optional up to 256 MB)
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
INPUT/OUTPUT
Configurable I/O 2 x Configurable digital Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA
Events SMS, Email, RMS
I/O juggler Allows to set certain I/O conditions to initiate event
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption 10.5 W max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 2 x RJ45 ports, 10/100 Mbps
I/Os 2 x Configurable digital Inputs/Outputs on 4 pin power connector
Status LEDs 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power
SIM 1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Antenna 2 x SMA for LTE, 2 x RP-SMA for WiFi
Power 1 x 4 pin DC connector
Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
Casing material Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 100 x 30 x 85 mm
Weight 247 g
Mounting options DIN rail, flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
