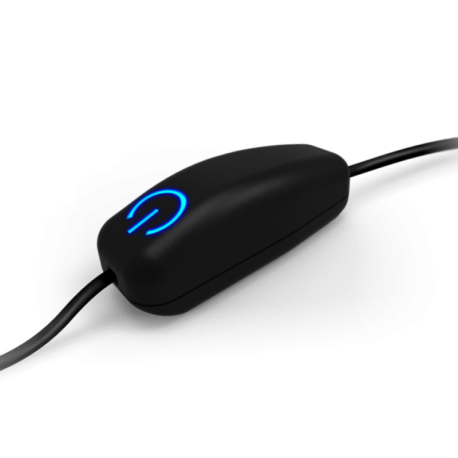

SwiidInter™ is the first - and at this time still the only - cord switch in the Z -Wave® ecosystem which is small enough to be compared to a regular cord switch. It can be used both manually like any ordinary cord switch and remotely by Z -Wave.
SwiidInter can also handle associations with other devices, both ways to and from it. Thus, your SwiidInter™ can respond directly to a signal from another Z-Wave device in your network, such as the triggering of a presence detector. Conversely with a short press or a long press it can control two separate Z-Wave device groups that have been associated with it : for example, all the other lights in your bedroom where your SwiidInter™ is on the cord of your bedside lamp.
Physically installing a SwiidInter™ is done in the same exact way as any ordinary cord switch: it is a quick and simple operation that requires no special tools. Once done, it will operate as an ordinary cord switch with a simple on/off push button. Only then can you configure your SwiidInter™ to include it into a Z-Wave® network and interoperate with other controllers and devices (even if you have only one other Z-Wave device).
Specifikationer:
- Device Type : Binary power switch
- Power input : 230V ± 10% - 50Hz
- Max. power : 660W
- EU Norms : EN 61058-2-1:2011 & EN 55015
- Protection index : IP20
- Size : 84 x 32 x 29 mm
- Radio protocol : Z-Wave® (SDK 4.55)
- Radio frequency : 868,42 MHz (EU)
- Transmission dist.: Max. 30m indoors depending on construction materials
- Working temp : 0 – 40°C
- On/Off signal : Blue LEDs
- Power consumption : < 0,08W
Kompatibilitetslistan uppdateras ganska ofta men fel kan förekomma. Hittar du något som är felaktigt så meddela oss gärna så att vi kan ändra!
Controller | Status | Kommentar |
---|---|---|
ZNet Lite V2 | Enheten fungerar helt och hållet | |
Home Center HC3 | Enheten fungerar helt och hållet i HC2 och HCL | |
Zipabox | Enheten fungerar helt och hållet |
