Fibaro Smart Module
Fibaro

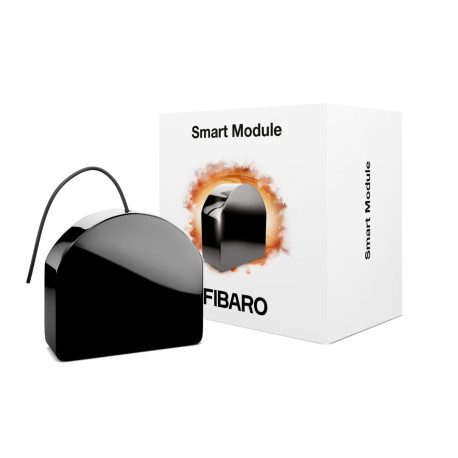

Fibaro Smart Module

Article no.: FGS-214
Availability: 2pcs - Hurry up
With the FIBARO Smart Module, you can integrate existing electrical installations (e.g. lighting, airing systems…) into a Z-Wave network. Thus, the connected devices can still be controlled with the existing wall switch, but – thanks to Z-Wave – also via remote control, sm... read more
709 kr

With the FIBARO Smart Module, you can integrate existing electrical installations (e.g. lighting, airing systems…) into a Z-Wave network. Thus, the connected devices can still be controlled with the existing wall switch, but – thanks to Z-Wave – also via remote control, smartphone or sensor-controlled automation.

The compact radio module is placed in a wall box right behind the normal switch. The switch is no longer directly connected to the load but acts as input device for the FIBARO insert that is controlling the load. The switch only sends control signal to the insert which controls the load then again. The solution works with all switch design. You can use a momentary or a toggle switch. It’s recommended to use wall boxes with 65mm depth. But smaller boxes with only 45mm depth can be used also if there is enough space behind the switch. The available space depends on the size of the traditional switch, the dimensions of the wall box and the amount of additional cabling placed in this box.

Features:

  • Radio module for wall box installation
  • Rated load current: 6.5A in single version
  • Power supply: 100-240 VAC ~ 50/60 HZ or 24-30VDC
  • Wireless Technology: Z-Wave Plus
  • S2
  • SmartStart

Write a review

What is Z-Wave Plus?

Z-Wave Plus™ is a certification developed to help users identify products that use the "new generation" also known as the "500 series" of Z-Wave hardware. Z-Wave Plus™ offers a bunch of extra functions and possibilities that improve your use and make the installation of Z-Wave devices easier.

Z-Wave has been the market leader in interoperable smart home devices since 2004. With the introduction of Next-Gen (Z-Wave 500 series) hardware, Z-Wave saw new opportunities, including longer range, longer battery life, Over The Air upgrade (OTA), more RF channels and much more. All this and they are backwards compatible with existing Z-Wave devices.

For consumers, home owners, integrators and service providers, this upgrade turned out to be very beneficial in terms of much easier installation, richer device profiles, improved self-healing and longer battery life.

Features:

  • 50% Longer battery life
  • 67% Longer range
  • 250% More Bandwidth
  • 3 F channels for improved interference protection and higher bandwidth
  • New Plug-n-Play network-wide inclusion process
  • Improved self-healing and fault tolerance with Explorer Frame function
  • Standardized method for Over the Air firmware updates (OTA)
  • Improved information for the product certification database

To be sure what is Z-Wave Plus certified, note this image above the product images on our website (Z-Wave Plus)

What is Z-Wave S2?

Z-Wave S2 is the latest generation of Z-Wave developed to reduce power consumption, faster commands between devices and increase security on the network.

Advanced encryption

S2 improves Z-Wave Plus and Gen5 devices with an extra layer of AES 128-bit encryption of wireless signals combined with security class UL 1023.

Increased security

The first two layers of security are joined by a third - Always-on ECDH key exchange, which makes man-in-the-middle or brute force hacking almost impossible.

Better battery life

ECDH and AES 128-bit reduce Z-Wave Plus wireless data transmission, security communication now uses 66% less battery.

Faster commands

Your smart home becomes seamless. S2 devices improve Z-Wave wireless performance speed by more than 50%, reducing latency down to milliseconds.

To be sure what is Z-Wave S2 certified, note this image above the product images on our website (Z-Wave Plus)
