Ontech PIR 9011

Article no.: OND-9011
Delivery time: Unconfirmed
READ OUR BLOG ON HOW TO GETTING STARTED WITH ONTECH GSM 9040 AND ACCESSORIES Ontech PIR 9011 is a motion detector that is connected by cable to Ontech GSM 9040, Ontech GSM 9025 or Ontech Relay Ontech 9015. If the alarm function is activated, Ontech PIR 9011 to detect movement ... read more
375 kr

READ OUR BLOG ON HOW TO GETTING STARTED WITH ONTECH GSM 9040 AND ACCESSORIES

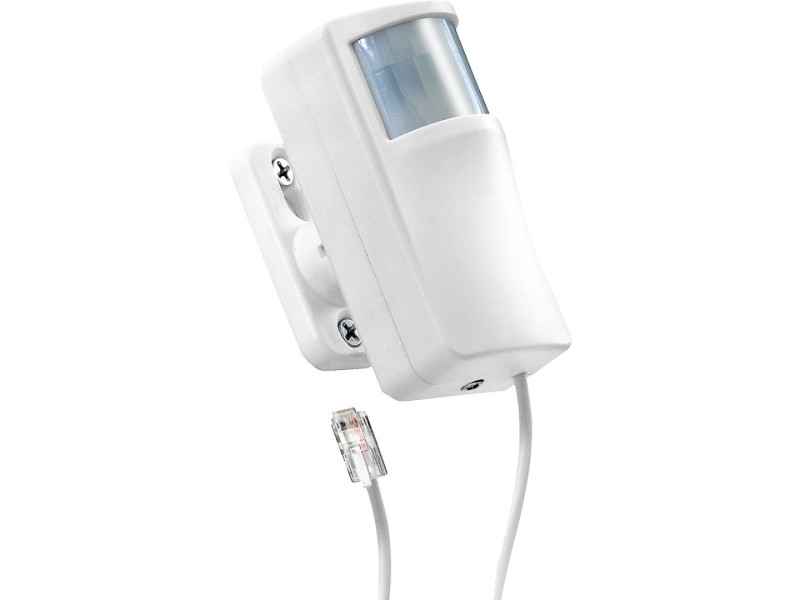

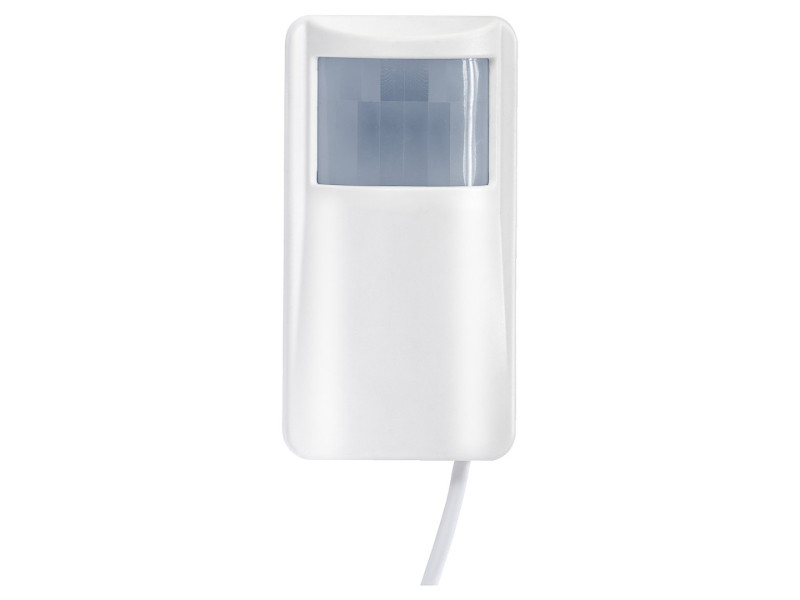

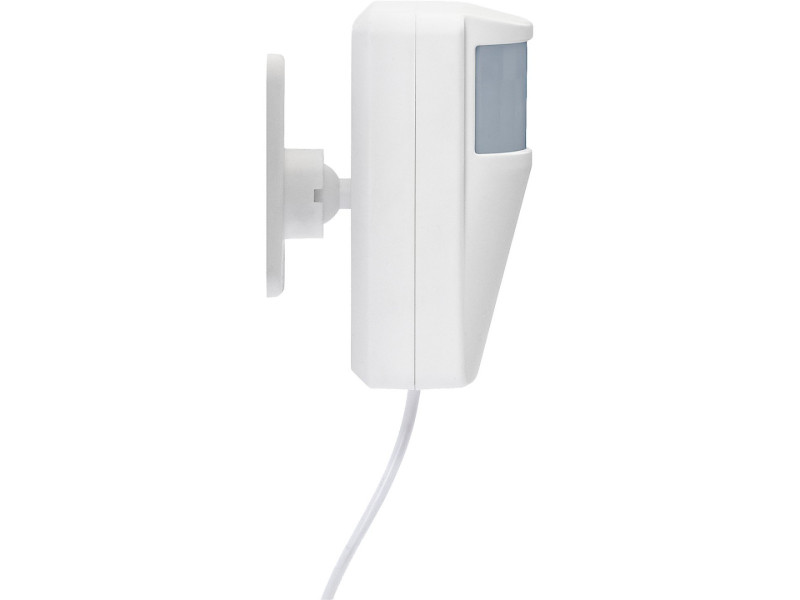

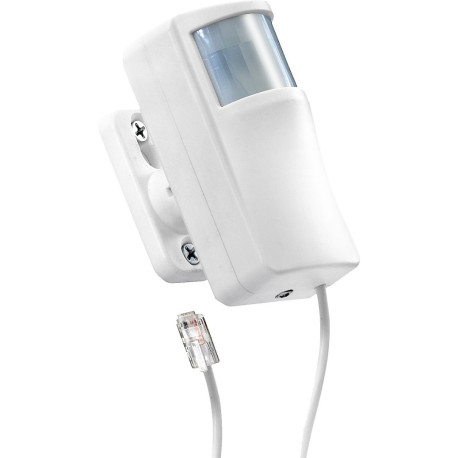

Ontech PIR 9011 is a motion detector that is connected by cable to Ontech GSM 9040, Ontech GSM 9025 or Ontech Relay Ontech 9015. If the alarm function is activated, Ontech PIR 9011 to detect movement and alarms

Ontech PIR 9011 is powered directly from the device it is plugged into and thus does not need a separate power supply.

It is very easy to install. It is plugged into the alarm socket in the Ontech GSM 9040 or Ontech Relay 9015 with the associated modular connector. If it is to be connected to an Ontech GSM 9025, the modular connector is cut and the wires are connected to the screw terminal in the Ontech GSM 9025.

Alarms are activated in Ontech Control.

Alarms via e-mail. SMS alerts are available as an option.

Key features

  • Works with Ontech models 9040, 9025, 9035 and 9015.
  • Powered directly from the Ontech model it connects to. No additional power supply required.
  • Easy to install. Connects directly to the alarm socket on 9040, 9035 and 9015.
  • For model 9025, the plug is cut. The cable is connected to terminal A on the circuit board.
  • The alarm function is activated in Ontech Control.
  • Alarms are sent via e-mail. Alarm via SMS can be obtained as an option.
Teknisk specifikation
Kabellängd 3 meter
Räckvidd ca 9 meter
Vinkel > 90 grader
Matningsspänning 3,8 V
Vikt 73 gram
Mått  79*42*39 mm. Hållaren bygger ut ytterligare 24 mm från vägg
Godkännande Uppfyller alla EU-krav om godkännande och är CE-märkt
Teknisk specifikation
Kabellängd 3 meter
Räckvidd ca 9 meter
Vinkel > 90 grader
Matningsspänning 3,8 V
Vikt 73 gram
Mått  79*42*39 mm. Hållaren bygger ut ytterligare 24 mm från vägg
Godkännande Uppfyller alla EU-krav om godkännande och är CE-märkt
