Sierra Wireless Airlink RV55 4G LTE Cat 4
Sierra Wireless Airlink RV55 4G LTE Cat 4
Sierra Wireless Airlink RV55 4G LTE Cat 4
Sierra Wireless

Sierra Wireless Airlink RV55 4G LTE Cat 4

Article no.: 1104337
Delivery time: Unconfirmed
The Sierra Wireless AirLink Raven RV55 is one of the industry's most durable and efficient 4G LTE CAT4 routers. Easy to install and easy to manage, the Raven RV55 is designed to connect critical assets and infrastructure. Ideal for industrial-grade energy, utility and smart infra... read more
11 509 kr

The Sierra Wireless AirLink Raven RV55 is one of the industry's most durable and efficient 4G LTE CAT4 routers.

Easy to install and easy to manage, the Raven RV55 is designed to connect critical assets and infrastructure. Ideal for industrial-grade energy, utility and smart infrastructure (IoT) applications, the Raven RV55 offers real-time remote connectivity for SCADA, distribution management systems (DMS) and metering.

The Raven RV55 brings the benefits of broadband to the most demanding environments , where maintenance is not an option and power resources are limited.

A profitable alternative to expensive wired and wireless technologies, providing a future-proof investment.

Supplied only with DC- cable, antennas not included.

Supplied with 1 year AirLink Complete

  • AirLink Management Service (ALMS)
  • Direct 24/7 Technical Support
  • 1-year standard warranty

Key Features:

  • Low power consumption - Draws only approx. 900 mW connected without ongoing data traffic and as little as approx. 53 mW in standby. Perfect for installations with solar cells as the only power source.
  • Extremely durable - Built to withstand voltage drops down to 5V and withstand current spikes from -600 VDC to +200 VDC.
  • IP64 rated and exceeds MIL-STD-810G specifications for shock and vibration.
  • 4G LTE - The router supports 4G LTE CAT4 up to 150 Mbit/s downlink and 50 Mbit/s uplink.
  • Extra reliable - Possibility of automatic restart of the SIM card, radio module and the entire router if necessary. The router will do everything it can to keep communication going. Hardware and Software Watchdogs.
  • Transparent Mode - RV55 can be made fully IP transparent for connection outside existing firewall/router or run in classic firewall mode.
  • Serial, I/O port - Equipped with an RS-232 serial port and a digital I/O port.
  • High security - Comes with features like port filtering and trusted IP that protect against intrusion.
  • VPN - RV55 provides secure and reliable VPN functionality for up to 5 simultaneous IPsec, GRE and OpenVPN sessions.
  • Remote Administration - Can be remotely administered and monitored directly or via AirLink Management Service (ALMS) (See Accessories).

Product sheet in PDF format (English)

Manual in PDF format (English)

User guide in PDF format (English)

Learn more about AirLink Management Service (ALMS)

LTE categories (LTE CAT) with speed

Read more about 4G / LTE bands and all frequencies

< td valign="top">4G (LTE) - Transmission: 50 Mbps. Reception: 150 Mbps < td valign="top">119 x 33 x 85 mm < td valign="top">320 g
Frequency band 700 MHz (LTE)
800 MHz (LTE )
900 MHz (LTE + 3G + 2 G)
1800 MHz (LTE + 2G)
2100 MHz (LTE + 3G)
2600 MHz (LTE)
Transmission technology 4G (LTE Advanced, Cat 4)
UMTS (3G) with HSPA+
Firewall Yes, NAT mode or fully transparent mode.
Applications SMS , Telnet/SSH, Reverse Telnet, SMTP, SNMP, SNTP
Speed
VPN Protocol IPSec (DES, 3DES, AES128) Up to 5 IPSec tunnels
GRE/SSL
GPS 30 channels GPS, GLONASS

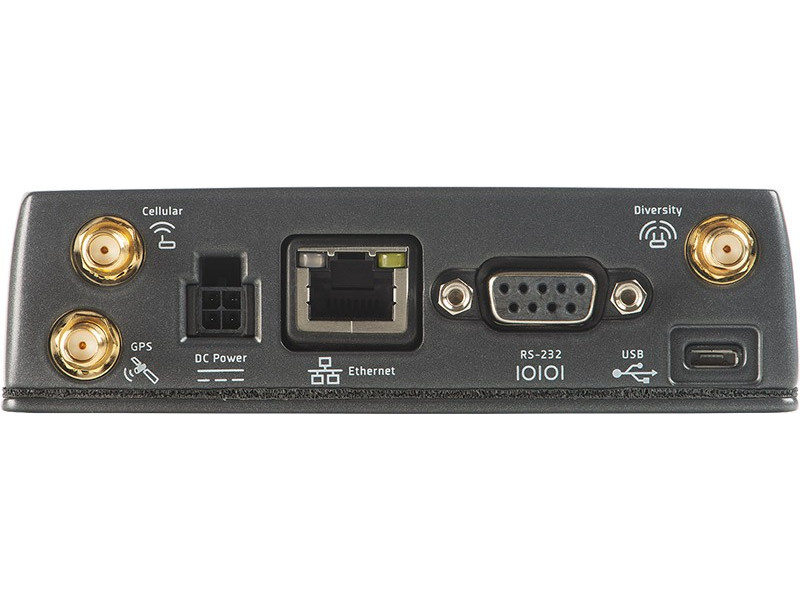

Connections 1 pc RJ45: LAN with 10/100/1000 Mbps Ethernet
1 RS-232 serial port
1 pc micro-USB
1 I/O via power connector. Digital/analog input.
Working temperature - 40 to +70 degrees C
Power Supply 7-36V DC (DC cable included)
Antenna connection Cellular/Mobile 2 pc SMA female, GPS 1 pc SMA female
SIM card Standard
DIN Mount Accessories
Size
Weight
Comes with DC cable. ATTENTION! antennas not included.
