Milesight UR35 4G WiFi

Article no.: UR35-L04EU-W
Delivery time: Est. delivery 7d

Milesight UR35 is an industrial 4G router with 5x 10/100 Ethernet and 802.11n WIFI. Just like all industrial routers, it has hardware and software watchdogs to always keep the router and the connection up in all conditions . Industry or Business The UR35 is designed for industria... read more

3 459 kr

button_wishlist

Milesight UR35 is an industrial 4G router with 5x 10/100 Ethernet and 802.11n WIFI.

Just like all industrial routers, it has hardware and software watchdogs to always keep the router and the connection up in all conditions .

Industry or Business
The UR35 is designed for industrial environments with strict requirements for operational safety, but is also excellent as a router for a company that wants a more operationally reliable 5G router than ordinary consumer products can offer. The possibility of Transparent Mode suits companies with their own existing firewalls to use this as primary/secondary Internet connection.

Firewall / Transparent Mode
The router is complete with an advanced firewall. But it can also be set in Transparent Mode if you want it outside another firewall.

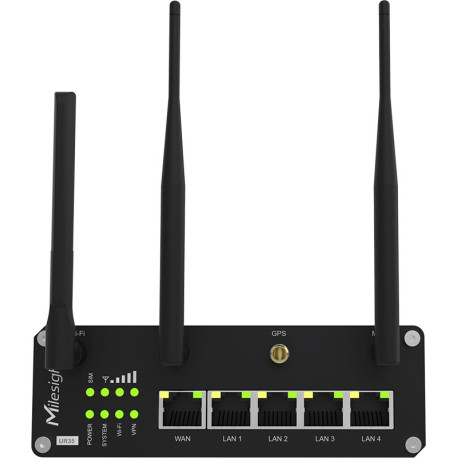

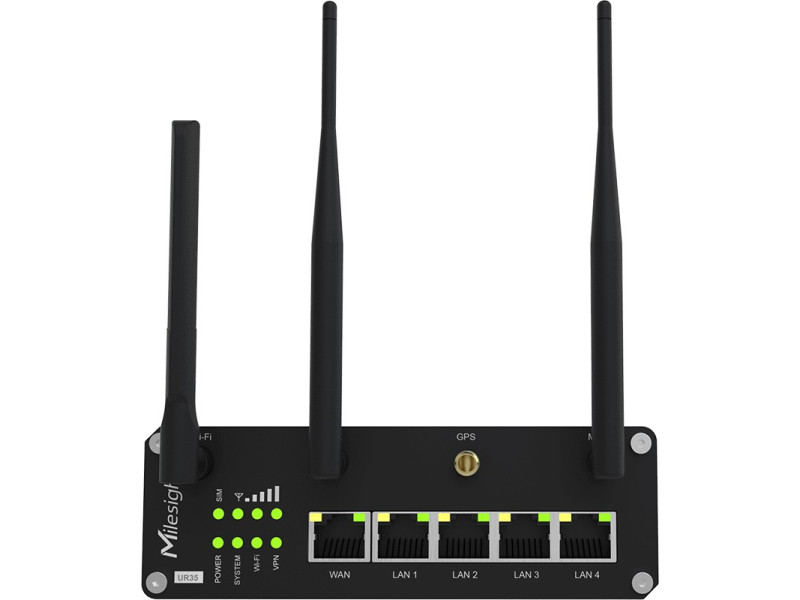

5 x 10/100 Ethernet
The UR35 has five Ethernet connectors configured as 4 x LAN + 1 x WAN.

802.11n
The router has a 2.4GHz WIFI 802.11b/g/n. It also supports WIFI as WAN.

VPN
UR35 supports several different VPN technologies such as IPSec, OpenVPN (Server or Client), PPTP (Client), L2TP, GRE and DMVPN

Fail over / Redundancy
The UR35 can also be connected to another internet connection via Ethernet. In addition, the WIFI module can be used to connect the router to another WIFI access point. The router can prioritize the cheapest/best connection and send traffic as needed.

Built-in support for Python applications
You can build your own Python applications and run them directly in the router, which makes that in many cases you can replace a local computer on site for simpler processing. A 528 MHz Qualcomm ARM Cortex-A7 processor with 128 MB Flash (and external MicroSD) and 128 MB RAM means that there is decent capacity for Python applications.

Other connections

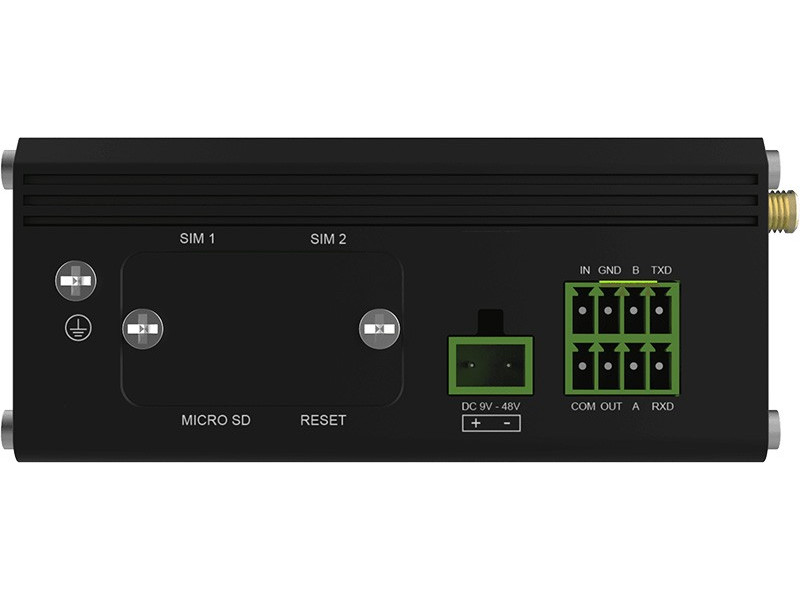

As I said, the UR35 is created for industrial applications and therefore they have the possibility to connect RS232/RS485 as well as a digital IN port and a digital OUT. RS232/RS485 can be connected as serial port server or Client. Or Modbus Slave/Master or Modbus gateway.

The IN port can e.g. can be used to trigger alarms via SMS, SNMP or email.

Routing
UR35 has advanced support for various routing protocols such as RIP, OSPF, Routing filtering and the possibility to static routing tables.. As well as interfering with VRRP for those who want a complete hardware redundant Fail over solution.

Event reporting
The router has a built-in report engine that can send E-mail , SMS and/or SNMP Traps when something happens. You can choose which type of event should trigger which action.

Managing
Milesight Device Management is available as an accessory (own server, Linux-based). Free for up to 25 devices.

Cloud VPN
Milesight VPN (DMVPN server) is available as an accessory for those who want a central VPN concentrator (own server, Linux /Ubuntu-based). Free for up to 25 devices.

Product sheet

Quick Start Guide

Manual

< /p>

< td valign="top"> < td valign="top">

Frequency band		4G LTE FDD band B1/B3/B5/B7/B8/B20
		4G LTE TDD band B38/B40/B41
		3G WCDMA band B1/B5/B8
Firewall		Yes, NAT mode or fully transparent mode.
Speed		4G (LTE) - Reception: 150Mbit/s, Trans dning: 50 Mbit/s
WLAN		2.4GHz 802.11 b/g/n
VPN Protocol		IPSec, OpenVPN (Server or Client), PPTP (Client), L2TP, GRE and DMVPN
Connections	5 RJ45 (10/100 Mbit/s) connected as 4 x LAN + 1 x WAN
		1 pc RS232/RS485 serial
	1 pc Digital IN and 1 pc Digital OUT
Working temperature		-40°C to +70°C
SIM card		2 pcs Standard SIM (mini)

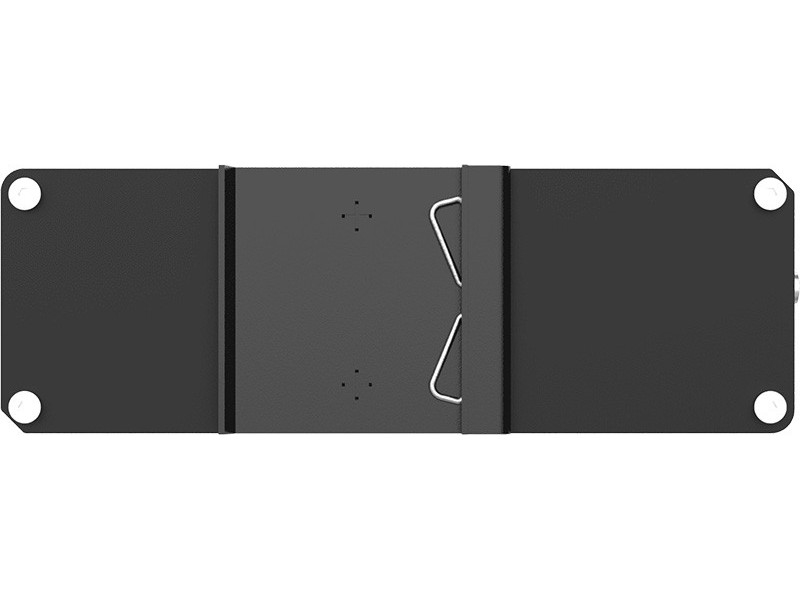

Supplied with		Antennas, Power supply , Ethernet cable, DIN rail mount and a terminal block for connecting I/O ports
Size		135 x 103 x 45 mm
Power Supply		9-48 VDC (230V Powersupply included)
Power consumption		Normal 3.9W Max 4.6W

Explanation of frequency bands

When choosing an antenna, pay attention to which frequency bands the antenna supports. Depending on which operator and where the antenna will be used, the frequency bands vary. Larger cities use 2600MHz while smaller towns use 800/900MHz with some support bands in between such as 1800/2100MHz.

A higher frequency band gives a higher speed but also has a shorter range. The same applies to the antenna, if you have a base station that transmits on 2600MHz, your antenna, antenna cable and the location of the antenna become more important than on a lower frequency band. Explanation of signal loss we will go through soon. Higher frequency bands also mean shorter range from the base station.

450MHz (coverage band) also known as the Net1 band is the frequency band that covers the most area in Sweden. Therefore, Net1 is known to be able to have reception where other operators don´t have a chance, but with low download and upload speeds. The reason why this band is called Net1 is because that the company Net1 has exclusive rights to this frequency band.

800MHz (coverage band) is used by all common operators, excluding Net1. The low frequency band means that 800MHz covers a lot of space. Therefore, the band is used outside big cities or smaller towns. 800MHz is the most used frequency band around Europe.

900MHz (coverage band) is the band that Tele2 and Telenor initially used as coverage band. 900MHz is a more unusual LTE band and in the beginning the band caused some problems when the clients (mobile phones etc.) could not connect to 900MHz. Today, the mobile phone manufacturers have adapted the mobile phones to be able to communicate on 900MHz.

1800MHz (capacity band) is the latest frequency band launched. All operators today use this band in metropolitan centers (apart from Net1).

2600MHz (capacity band) is a very well-used frequency band all over Europe. 2600MHz is the highest frequency band used for LTE, this means that the band also has the shortest range compared to 800/900MHz. Due to the high capacity, the band is used in metropolitan environments where many base stations are required to cover as much surface as possible and have as high a capacity as possible.

Frekvensplan 4G
