EAD LMO7270/G-wb-sm3 Omnidirectional 690-2700MHz MiMo Antenna for 2G/3G/4G/5G and GPS

Article no.: LMO7270-G-WB-SM3
Availability: 3pcs - Hurry up

Omnidirectional LMO7270/G – LTE MIMO GNSS outdoor omni antenna This omnidirectional antenna has 2 antenna elements for optimal reception in the fast 4G and 5G networks. LMO7270 / G is an LTE MIMO GNSS outdoor omni antenna suitable for 5G LTE applications where LTE recept... read more

1 590 kr

button_wishlist

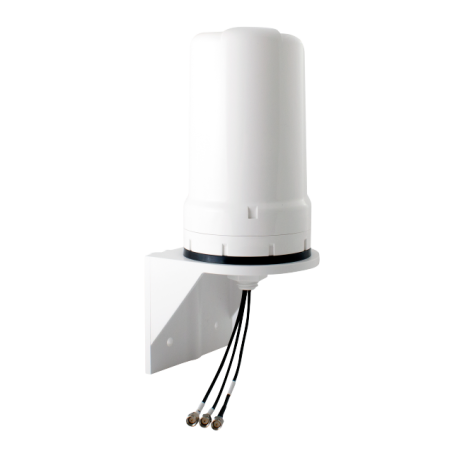

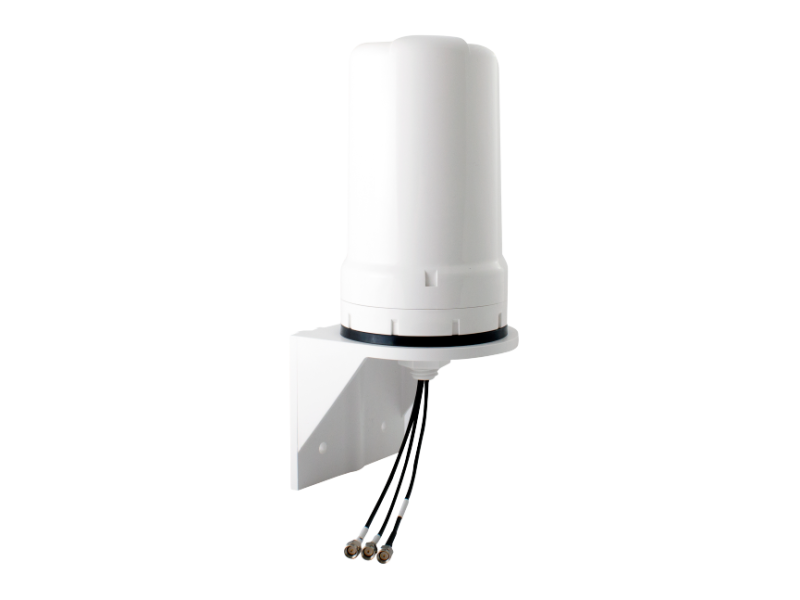

Omnidirectional LMO7270/G – LTE MIMO GNSS outdoor omni antenna

This omnidirectional antenna has 2 antenna elements for optimal reception in the fast 4G and 5G networks.

LMO7270 / G is an LTE MIMO GNSS outdoor omni antenna suitable for 5G LTE applications where LTE reception and GNSS functionality are required

LMO7270 / G is a Outdoor LTE MIMO GNSS omni antenna suitable for LTE access applications that require a MIMO antenna as well as active GPS / GLONASS functionality. Available either as a non-metallic mount or via an optional pole/wall mount bracket, this antenna is an attractive and efficient solution.

Ideal as a solution for recreational boats or for wireless security/surveillance systems, the LMO7270 / G is complemented by the RF240 and RF400 low-loss cables that improve installation options.

The antenna supports the frequency bands 690-800/800 -960 / 1710-2170 / 2500-2700 MHz which means all 2G/3G/4G and 5G networks in use in Sweden and the rest of Europe today. The antenna's average gain is 3dbi.

The antenna is delivered with 3x15cm antenna cables with SMA male connector for further connection of any length. See accessories for ready-made cable lengths or contact us to have your cable tailored to your needs.

The antenna is approximately 187 mm in height and 106mm at the base. It will be available with or without the wall/pole mount and is fed by two short pigtail cables, allowing longer cables to be connected for specific cabling.

ACT7270 antenna is provided with a gasket and a nut as standard, so that the antenna can be installed permanently with through holes

Alternative mounts for wall or post.

Frekvensområde	690-800/800-960 1710-2170/2500-2700 MHz
Max gain - Element 1 Max gain - Element 2	1.4 / 2.0 /3.0 / 3.3 dBi 2.8 / 3.0 / 3.9 / 3.9 dBi
Polarisation	Dubbel
Impedans	50 Ohm
VSWR	<2:1
Effekt	10W
Drifttemperatur	-30 Till +70 grader C°
Kabel / Anslutningar	2 x 15cm SMA anslutning
Dimensioner	187 x 106 (h x d) Exkl. monterings bracket

Frekvensområde	690-800/800-960 1710-2170/2500-2700 MHz
Max gain - Element 1 Max gain - Element 2	1.4 / 2.0 /3.0 / 3.3 dBi 2.8 / 3.0 / 3.9 / 3.9 dBi
Polarisation	Dubbel
Impedans	50 Ohm
VSWR	<2:1
Effekt	10W
Drifttemperatur	-30 Till +70 grader C°
Kabel / Anslutningar	2 x 15cm SMA anslutning
Dimensioner	187 x 106 (h x d) Exkl. monterings bracket

Explanation of frequency bands

When choosing an antenna, pay attention to which frequency bands the antenna supports. Depending on which operator and where the antenna will be used, the frequency bands vary. Larger cities use 2600MHz while smaller towns use 800/900MHz with some support bands in between such as 1800/2100MHz.

A higher frequency band gives a higher speed but also has a shorter range. The same applies to the antenna, if you have a base station that transmits on 2600MHz, your antenna, antenna cable and the location of the antenna become more important than on a lower frequency band. Explanation of signal loss we will go through soon. Higher frequency bands also mean shorter range from the base station.

450MHz (coverage band) also known as the Net1 band is the frequency band that covers the most area in Sweden. Therefore, Net1 is known to be able to have reception where other operators don´t have a chance, but with low download and upload speeds. The reason why this band is called Net1 is because that the company Net1 has exclusive rights to this frequency band.

800MHz (coverage band) is used by all common operators, excluding Net1. The low frequency band means that 800MHz covers a lot of space. Therefore, the band is used outside big cities or smaller towns. 800MHz is the most used frequency band around Europe.

900MHz (coverage band) is the band that Tele2 and Telenor initially used as coverage band. 900MHz is a more unusual LTE band and in the beginning the band caused some problems when the clients (mobile phones etc.) could not connect to 900MHz. Today, the mobile phone manufacturers have adapted the mobile phones to be able to communicate on 900MHz.

1800MHz (capacity band) is the latest frequency band launched. All operators today use this band in metropolitan centers (apart from Net1).

2600MHz (capacity band) is a very well-used frequency band all over Europe. 2600MHz is the highest frequency band used for LTE, this means that the band also has the shortest range compared to 800/900MHz. Due to the high capacity, the band is used in metropolitan environments where many base stations are required to cover as much surface as possible and have as high a capacity as possible.

Frekvensplan 4G
