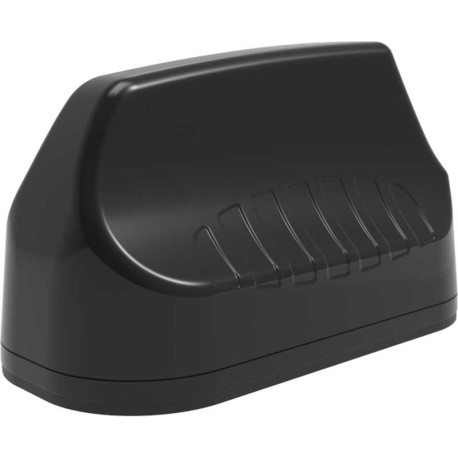

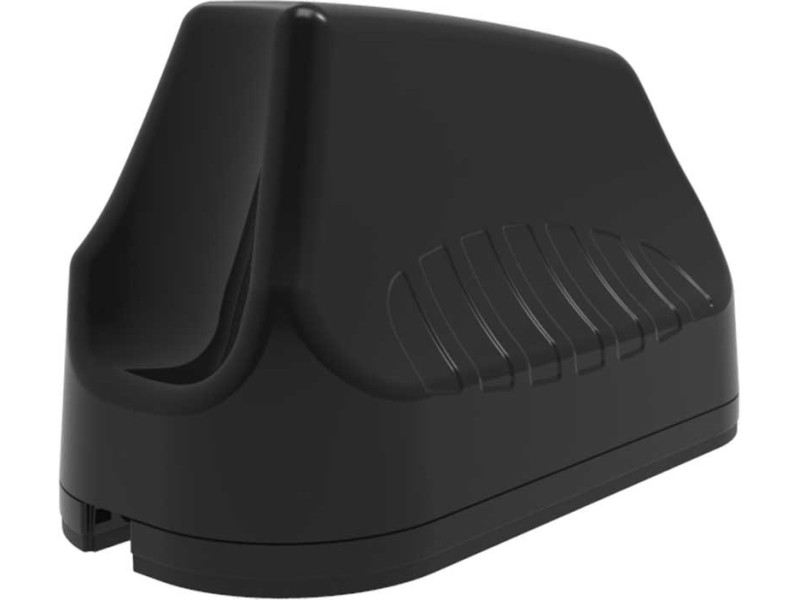

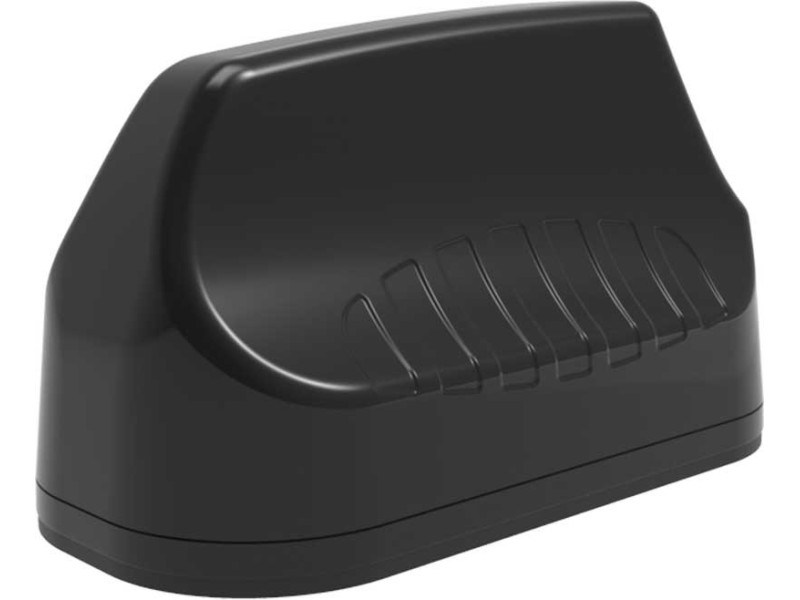

Poynting MIMO-3 5G 4x4 LTE WiFi GPS Black

Article no.: A-MIMO-0003-V2-17-B
Delivery time: Est. delivery 7d

3 829 kr

The Poynting MIMO-3-17 is a 7-in-1 high-performance multi-frequency antenna in a single housing that provides four cellular, two Wi-Fi and one GPS antenna. The four cellular MIMO antennas (2G/3G/4G/5G) cover 410-3800 MHz bands, as well as the new LTE and 5G spectrum for 450 MHz and 3.5 GHz CBRS bands.
Antenna performance allows it to be used for different operators and technologies and is ready for future mobile technology up to 3.8 GHz for 5G applications. The antenna provides two separate dual-band Wi-Fi antennas, providing 2.4 GHz and 5 GHz simultaneously with 2 × 2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system.
The main applications are for marine and commercial/industrial vehicles and other M2M IoT systems.
MIMO-3 works down to -40 degrees, is rated IP68 and vehicle-certified with E-Mark E1.

Explanation of frequency bands

When choosing an antenna, pay attention to which frequency bands the antenna supports. Depending on which operator and where the antenna will be used, the frequency bands vary. Larger cities use 2600MHz while smaller towns use 800/900MHz with some support bands in between such as 1800/2100MHz.

A higher frequency band gives a higher speed but also has a shorter range. The same applies to the antenna, if you have a base station that transmits on 2600MHz, your antenna, antenna cable and the location of the antenna become more important than on a lower frequency band. Explanation of signal loss we will go through soon. Higher frequency bands also mean shorter range from the base station.

450MHz (coverage band) also known as the Net1 band is the frequency band that covers the most area in Sweden. Therefore, Net1 is known to be able to have reception where other operators don´t have a chance, but with low download and upload speeds. The reason why this band is called Net1 is because that the company Net1 has exclusive rights to this frequency band.

800MHz (coverage band) is used by all common operators, excluding Net1. The low frequency band means that 800MHz covers a lot of space. Therefore, the band is used outside big cities or smaller towns. 800MHz is the most used frequency band around Europe.

900MHz (coverage band) is the band that Tele2 and Telenor initially used as coverage band. 900MHz is a more unusual LTE band and in the beginning the band caused some problems when the clients (mobile phones etc.) could not connect to 900MHz. Today, the mobile phone manufacturers have adapted the mobile phones to be able to communicate on 900MHz.

1800MHz (capacity band) is the latest frequency band launched. All operators today use this band in metropolitan centers (apart from Net1).

2600MHz (capacity band) is a very well-used frequency band all over Europe. 2600MHz is the highest frequency band used for LTE, this means that the band also has the shortest range compared to 800/900MHz. Due to the high capacity, the band is used in metropolitan environments where many base stations are required to cover as much surface as possible and have as high a capacity as possible.
