Milesight

Milesight AM307 LoRa Indoor Sensor

Article no.: AM307-868M
Delivery time: Est. delivery 7d
Milesight AM307 is a LoRaWAN device with seven different sensors that monitors the indoor climate in the office, school, conference rooms, hospital, workshop, etc. The device monitors temperature, humidity, air pressure, carbon dioxide, TVOC / Total Volotile Organic Compound (har... read more
3 749 kr

Milesight AM307 is a LoRaWAN device with seven different sensors that monitors the indoor climate in the office, school, conference rooms, hospital, workshop, etc.

The device monitors temperature, humidity, air pressure, carbon dioxide, TVOC / Total Volotile Organic Compound (harmful organic substances in the air), brightness, movement

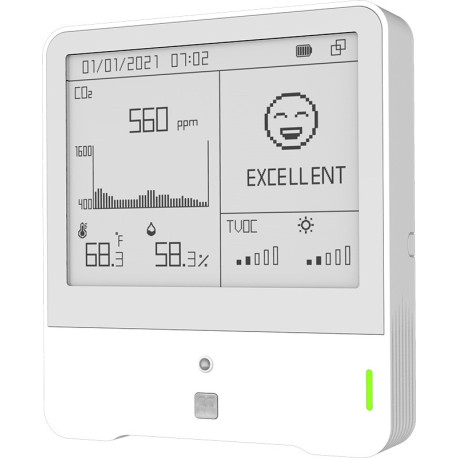

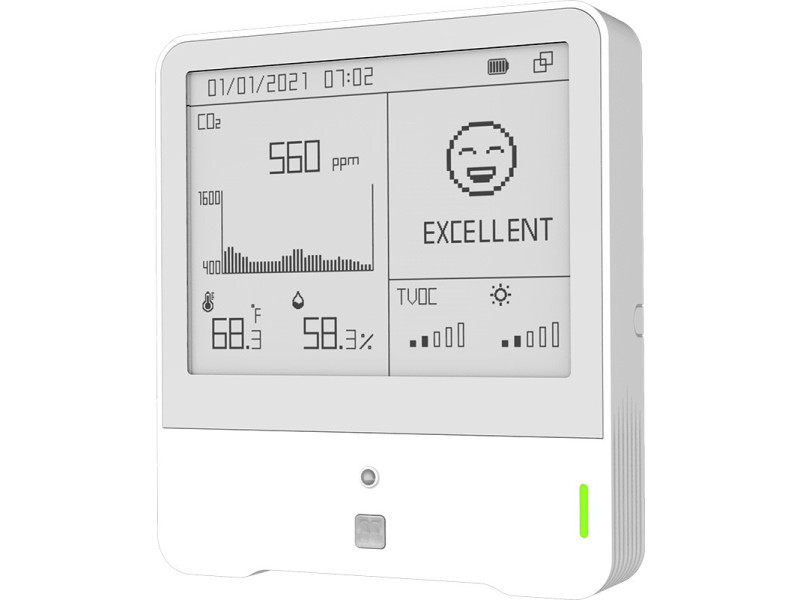

The model also has an E-ink screen that presents measured values to the staff. Anyone walking past the device on the wall can see, for example, the carbon dioxide level, the humidity, the temperature or the level of harmful organic substances.

A face on the display presents in a very simple way whether the air quality is good, on the border or badly. You can set the levels in the unit yourself. An LED can flash red if thresholds are exceeded.

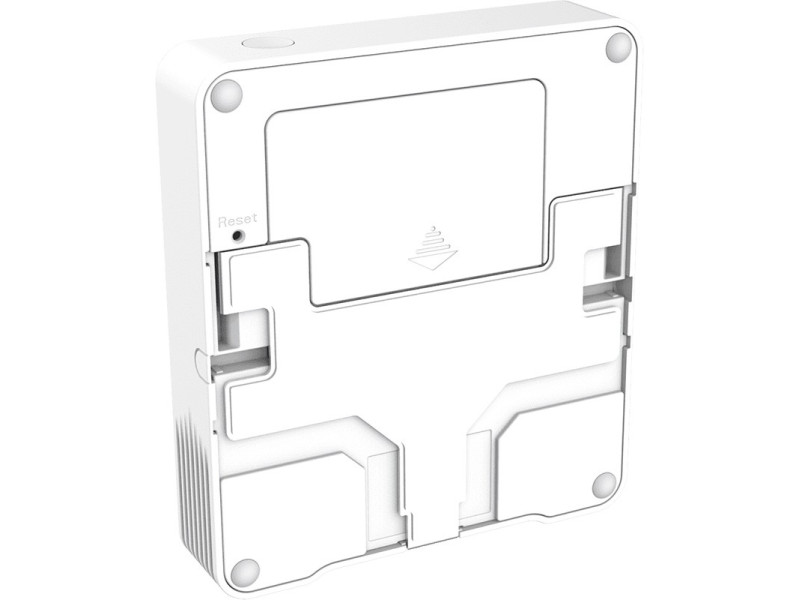

AM307 is super easy to install as it comes with Li-SOCI batteries that last 3 years (at 10 minute intervals). The unit is simply to be screwed up or pasted onto the wall with the included 3M double-adhesive plate. No wiring required.

The connection to the Milesight LoRaWAN gateway and IoT Cloud is completely automatic just by scanning the barcode with the mobile app (Milesight IoT Cloud) or manually entering the serial number in the web portal.

And if you prefer to power the device permanently, there is a USB C port on the back which is compatible with standard USB chargers.

The device will be pre-configured (Plug-n-play) to only be connected to the Milesight LoRaWAN gateway / Milesight IoT Cloud via the serial number on a barcode. But the device can be configured via a mobile app just by placing the mobile against the device (NFC). If you want to change the settings for the E-ink screen or configure the device to fit other LoRaWAN gateways or Cloud systems, you can do it easily via the mobile app.

Product sheet Milesight AM300 series

Other Milesight LoRaWAN sensors and nodes

Milesight IoT Cloud Brochure

< tr> < td valign="top"> < td valign="top"> < /tr>
Frequency band 868 MHz
Battery life 3 years at 10 minute intervals
Temperature -20 to + 60 degrees
Measuring range Temperature: -40 to +85
Humidity: 0-100% relative humidity
Carbon dioxide: 400-5000 ppm
Light: 0-60000 Lux (presented as level 0-5)
TVOC / Total Volotile Organic Compounds: 0-500 units< /td>
Air pressure 300-1100 hPa
Power supply 4 x Li-SOCI 2700 mAh ER14505< /td>
USB C
