Shelly Qubino Z-Wave 1PM Relay 16A 1 channel

Article no.: Shelly_W_1PM
Availability: 11st

The Shelly Qubino Z-Wave Wave 1PM Relay 16A 1 channel turns an ordinary wall switch or socket into a smart one. It can be used to automate a wide range of electrical devices, such as a light, ceiling fan, hot water tank, or pool pump. It is ideal for power monitoring and rem... read more

266 kr

Ord. price 355 kr

button_wishlist

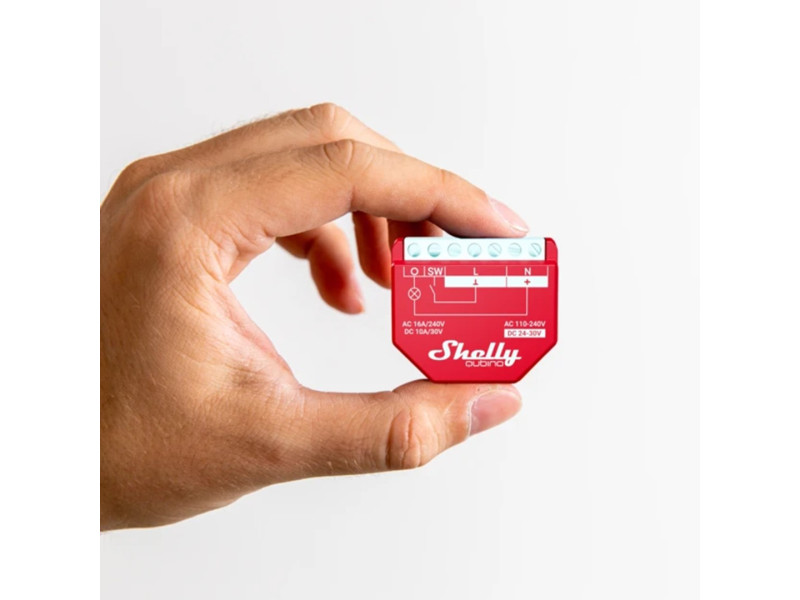

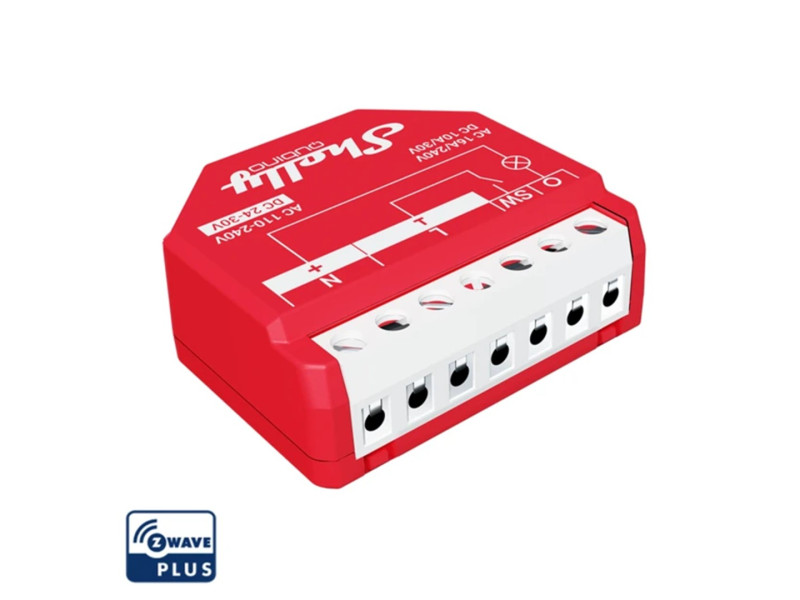

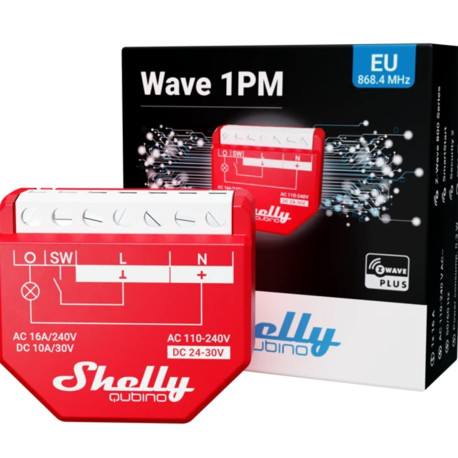

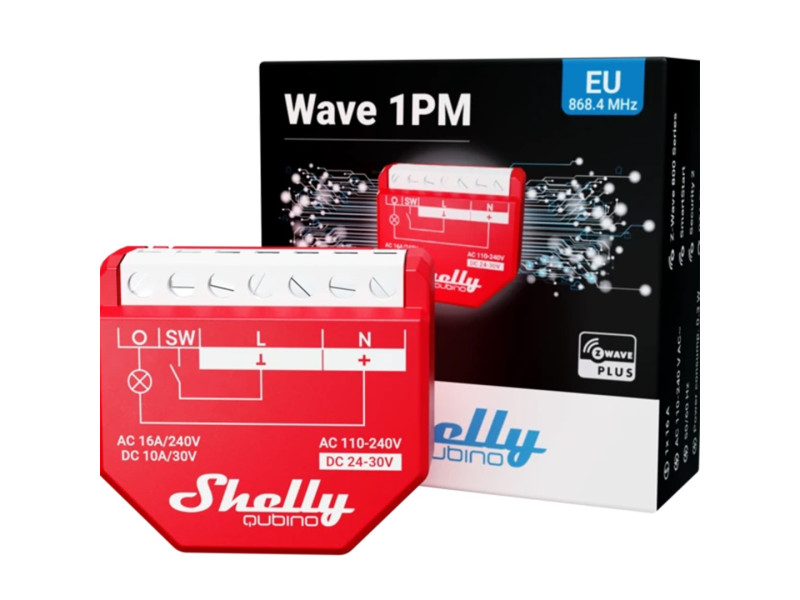

The Shelly Qubino Z-Wave Wave 1PM Relay 16A 1 channel turns an ordinary wall switch or socket into a smart one. It can be used to automate a wide range of electrical devices, such as a light, ceiling fan, hot water tank, or pool pump.

It is ideal for power monitoring and remote control (on/off) of one electrical device or one group of devices, which can be controlled via smartphone or tablet according to schedules or scenes, etc. It is compatible with switches or push buttons.

A gateway (smart hub) is required for the configuration of the device.

Features:

Relay Z-Wave 1 channel 16A total
Measures power consumption of the connected device.

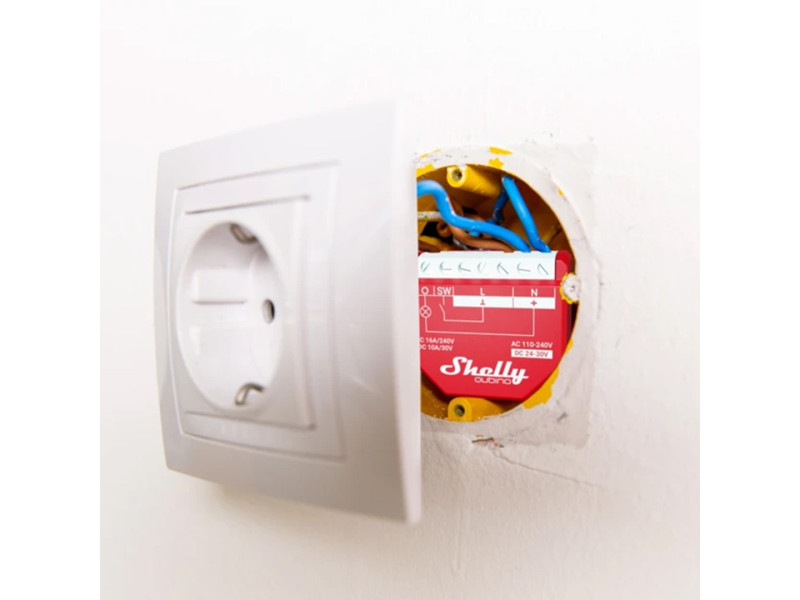

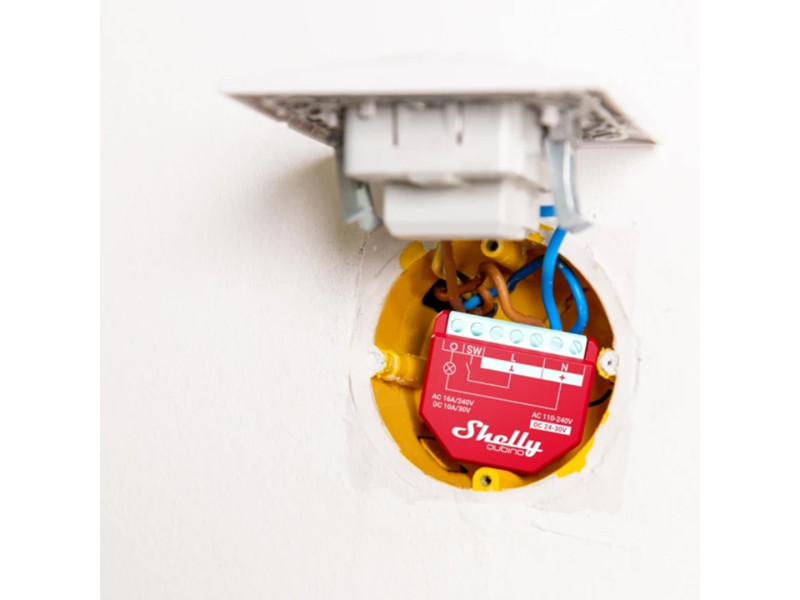

Small size ensures the simplest installation behind every wall switch or wall socket
Extended wireless range: Up to 40m indoors
SmartStart for the automatic set-up.
OTA Firmwareupdate for over-the-air updates
SecurityVault™ ensures the highest level of security with features, such as secure boot, secure key management, secure debug, and more
S2 Security authenticated
Extremely low energy consumption: Less than 0.3W
Power supply: 110-240 V AC / 24–30 V DC
Max. switching current AC: 16 A
Max. switching voltage DC: 30 V
Max. switching current DC: 10 A
Overheating protection: Yes
Overload protection: Yes
Distance: Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave S800
Ambient temperature: -20°C to 40°C
Humidity: 30% to 70% RH
Max. altitude: 2000 m

What is Z-Wave Plus?

Z-Wave Plus™ is a certification developed to help users identify products that use the "new generation" also known as the "500 series" of Z-Wave hardware. Z-Wave Plus™ offers a bunch of extra functions and possibilities that improve your use and make the installation of Z-Wave devices easier.

Z-Wave has been the market leader in interoperable smart home devices since 2004. With the introduction of Next-Gen (Z-Wave 500 series) hardware, Z-Wave saw new opportunities, including longer range, longer battery life, Over The Air upgrade (OTA), more RF channels and much more. All this and they are backwards compatible with existing Z-Wave devices.

For consumers, home owners, integrators and service providers, this upgrade turned out to be very beneficial in terms of much easier installation, richer device profiles, improved self-healing and longer battery life.

Features:

50% Longer battery life
67% Longer range
250% More Bandwidth
3 F channels for improved interference protection and higher bandwidth
New Plug-n-Play network-wide inclusion process
Improved self-healing and fault tolerance with Explorer Frame function
Standardized method for Over the Air firmware updates (OTA)
Improved information for the product certification database

To be sure what is Z-Wave Plus certified, note this image above the product images on our website ()

What is Z-Wave S2?

Z-Wave S2 is the latest generation of Z-Wave developed to reduce power consumption, faster commands between devices and increase security on the network.

Advanced encryption

S2 improves Z-Wave Plus and Gen5 devices with an extra layer of AES 128-bit encryption of wireless signals combined with security class UL 1023.

Increased security

The first two layers of security are joined by a third - Always-on ECDH key exchange, which makes man-in-the-middle or brute force hacking almost impossible.

Better battery life

ECDH and AES 128-bit reduce Z-Wave Plus wireless data transmission, security communication now uses 66% less battery.

Faster commands

Your smart home becomes seamless. S2 devices improve Z-Wave wireless performance speed by more than 50%, reducing latency down to milliseconds.

To be sure what is Z-Wave S2 certified, note this image above the product images on our website ( Z-Wave Plus )
