Active holder for fixed installation - VeriFone V400m

Article no.: 712210
Discontinued

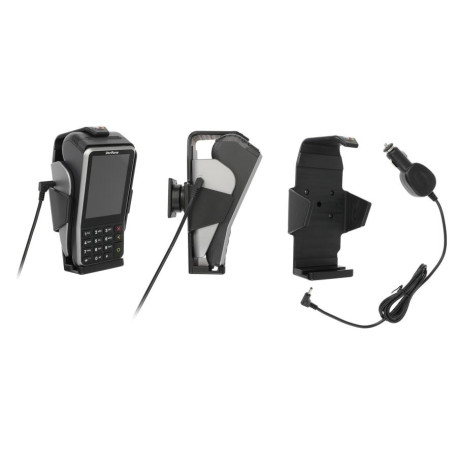

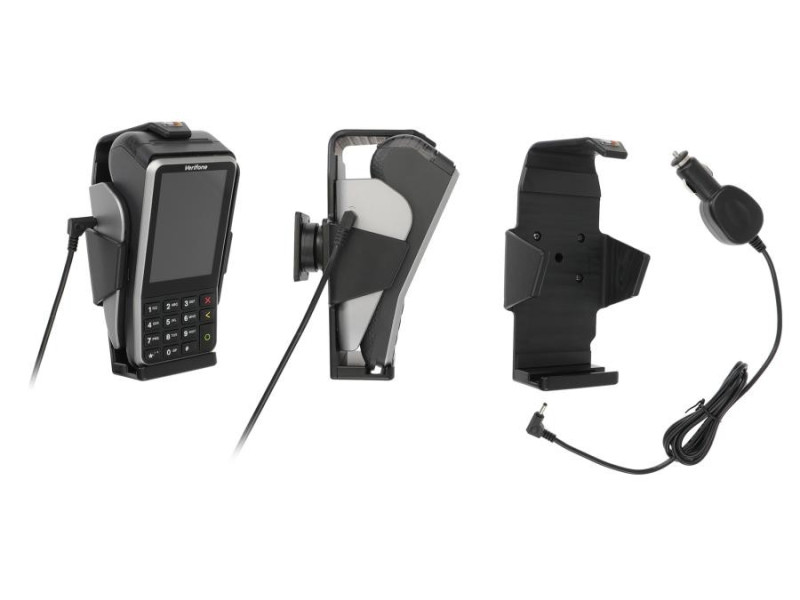

Active holder for fixed installation

For unit with base station. With ball joint.

With your payment terminal in an active holder, you always have a freshly charged battery when you leave the car. Model-specific, perfect fit for device with base station. 12/24 Volts.

The holder is equipped with a ball joint so you can easily adjust the angle to get a good view of the screen. Tiltable 17° and rotatable 360°. Mounting plate 42x50 mm with 4 mm AMPS hole. Made of black ABS/Acetal plastic. Made in Sweden. Mounted on ProClip Mounting Platform or Pedestal Bracket.

Read the entire instruction carefully and look at the pictures before starting the assembly.

1. Loosen the screw in the middle of the holder so you can remove the mounting plate on the back. Place the mounting plate in the desired location. Secure the mounting plate with the supplied screws. Place the holder over the mounting plate so that the screw fits into the hole in the ball joint. First tighten the screw then so that the holder is firmly in place but can still be angled.

2. Place the charging station with one side in the holder. Press/rotate the base station forward into the holder. Slide the base station down into place. Connect the charging cable to the base station.

3. Place the lower part of the device in the holder lower part. Press the upper part of the device forward into place in the holder. Pull the top of the device out of the top of the holder. Lift the device out of the holder.

4. The holder fully assembled.
