Panel Mountable Four-Channel Temperature Data Logger

Artikelnummer: EL-SGD70-ATP
Utgått ur sortimentet

Overview

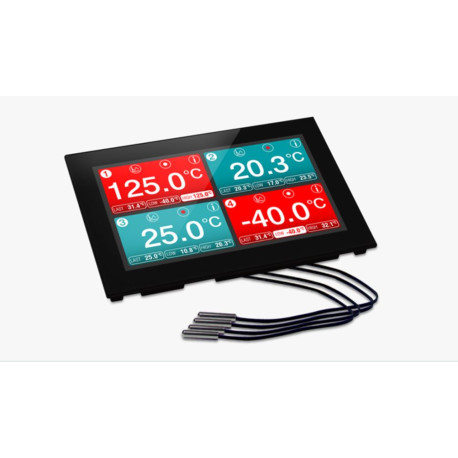

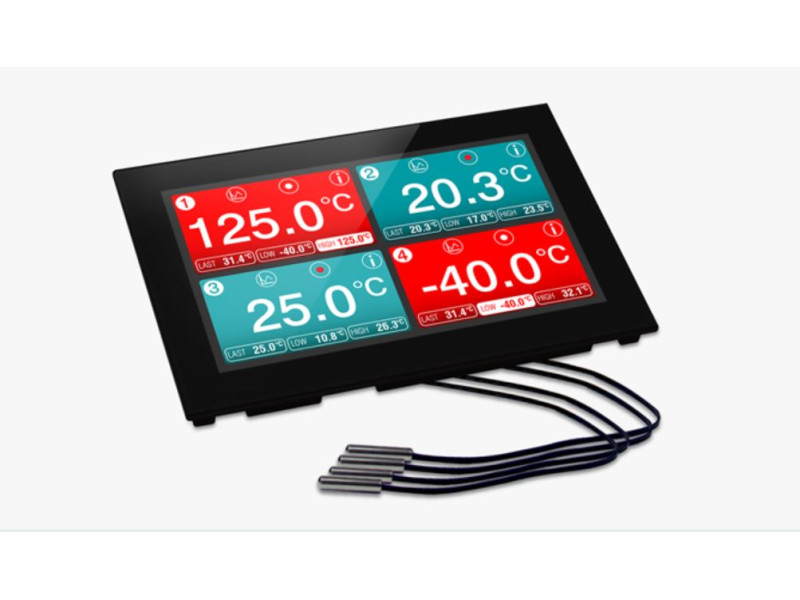

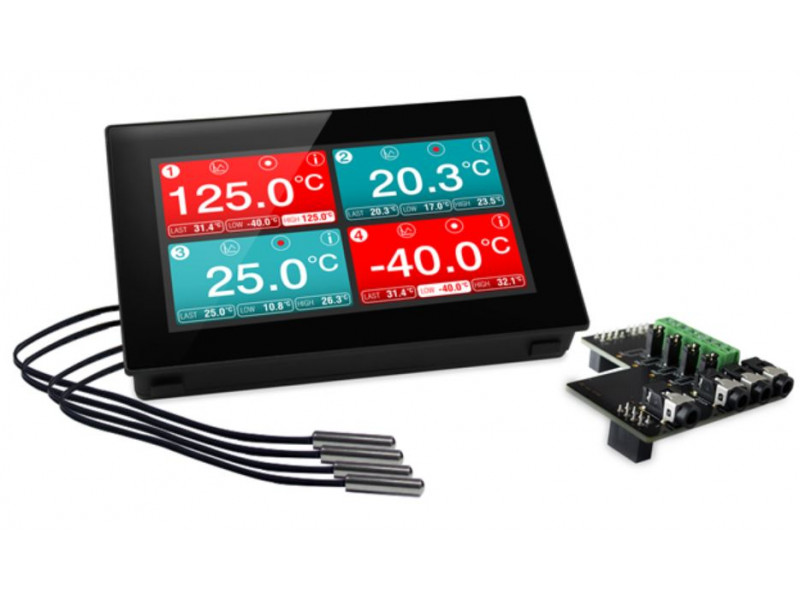

The EL-SGD 70-ATP is a panel-mountable, four-channel temperature data logger based on Lascar’s PanelPilotACE platform. The product includes a 7” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board and x4 compatible temperature probes. The user interface comprises an advanced logging application which shows real-time readings for all four temperature channels, live trend graphs and access to a suite of real-time data analysis information.  The logger can store up to 100,000 readings per channel at sample rates from 5 seconds  to 12 hours.



Specification

Supplied probe measurement range
-40°C to +125°C (-40°F to +257°F)
Internal Resolution
0.01°C (0.01°F)
Temperature Accuracy
±1.0°C (±1.8°F)
Number of Readings (per channel)
100,000
Logging Rate
5 seconds to 12 hours
Number of Channels
up to 4
Outside Dimensions
186 mm (7.3”) x 122 mm (4.3”) x 21 mm (0.8”)
Communications Protocols
USB


Application Info

Each EL-SGD 70-ATP includes:
